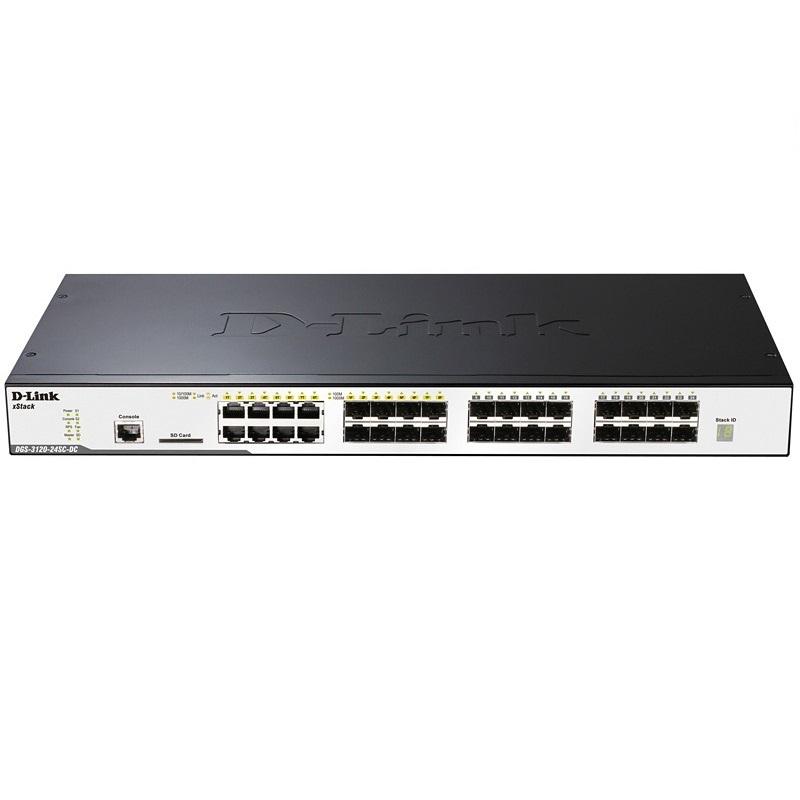

16 SFP ports + 8 Combo 10/100/1000BASE-T/SFP ports xStack L2+ Managed Switch D-Link DGS-3120-24SC-DC/UEI
- The DGS-3120-24SC-DC/UEI xStack L2+ Managed Gigabit Switch provides 16 SFP ports and 8 Combo 10/100/1000BASE-T/SFP ports and DC power supply.
- The DGS-3120 Series has support for three different software images - the Standard Image (SI), Enhanced Image (EI), and Routed Image (RI). The Standard Image provides sophisticated features for campus or enterprise usage. It includes advanced Quality of Service (QoS), traffic shaping, L2 multicasting, robust security features, and IPv6 features which are suitable for next-generation IPv6 networks or triple play applications over Metro Ethernet. The Enhanced Image supports ERPS, Double VLAN (Q-in-Q), Ethernet OAM, Static Route, IMPB, and sFlow. The Routed Image supports DHCP Server, VRRP, IPv6 Tunneling, RIP, OSPF, IGMP, MLD, PIM, and DVMRPv3.
Specifications
| Model | DGS-3120-24SC-DC/UEI |
| Interfaces | |
| Number of SFP ports | 16 |
| Combo 1000Base-T/SFP ports | 8 |
| Console Port | RJ-45 |
| SD card slot | Yes |
| Stacking ports | 2 |
| SD card | 1 |
| Performance | |
| Switch Capacity | 88 Gbps |
| 64-Byte Packet Forwarding Rate | 65.48 Mpps |
| MAC address table | 16K entries |
| Packet Buffer | 2MB |
| Flash Memory | 32MB |
| Software Features | |
| L2 features | Flow Control, Spanning Tree, Loopback Detection, Port Mirroring, 802.3ad Link Aggregation |
| Support | Stackability, VLAN, QoS, ACL, Security, Green Technology |
| Physical and Environmental | |
| Power Input | 48 V DC, 1.2 A max |
| Power Consumption | 32.4W |
| Dimensions | 440 x 210 x 44 mm |
| Weight | 2.6kg |
- Bảo hành 36 tháng.
