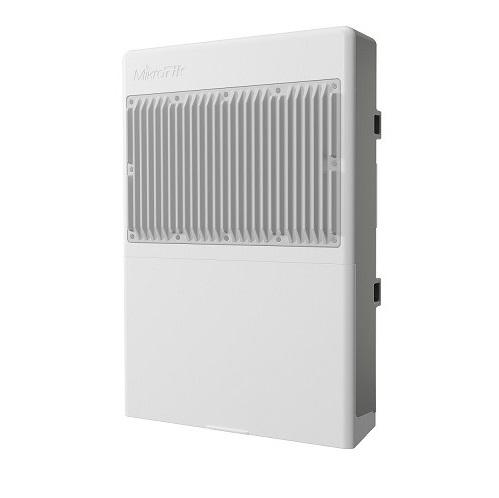

16-Port Gigabit Ethernet+2-Port 10G SFP+ Switch PoE Mikrotik CRS318-16P-2S+OUT
- Switch PoE hỗ trợ 2 cổng 10G SFP+, 16 cổng Gigabit hỗ trợ PoE.
- Tổng công suất: 316W.
- RAM: 256MB.
- Kích thước: 303 x 212 x 78 mm.
Đặc tính kỹ thuật
| Model | CRS318-16P-2S+OUT |
| General | |
| CPU | 98DX226S, 800 MHz |
| CPU temperature monitor | Yes |
| Size of RAM | 256 MB |
| Storage | 16 MB flash |
| Switch chip model | 98DX226S |
| Number of 1G Ethernet ports | 16 |
| Number of 10G SFP+ ports | 2 |
| Operating system | RouterOS (License level 5) / SwOS (dual boot) |
| Dimensions | 303 x 212 x 78 mm |
| Operating temperature | -40°C to +70°C |
| Powering | |
| PoE-out | Passive PoE with auto sensing, 802.3af/at |
| PoE-out ports | Ether1 - Ether16 |
| Max PoE-out on low (< 30 V) voltage | 5.6 A (2.8 A per 8port group, max 1.1 A per port) |
| Max PoE-out on high (> 30 V) voltage | 2.8 A (1.4 A per 8port group, max 0.6 A per port) |
| Max total out (A) | The total output power limit will also depend on your power supply max current limit. You should not exceed your power supply current limit or the board may reboot |
| Number of DC jacks | 2 |
| Supported input voltage | 18-30V/48- 57 V |
| Max power consumption | 316 W |
| Max power consumption without attachments | 16 W |
- Bảo hành: 12 tháng.
