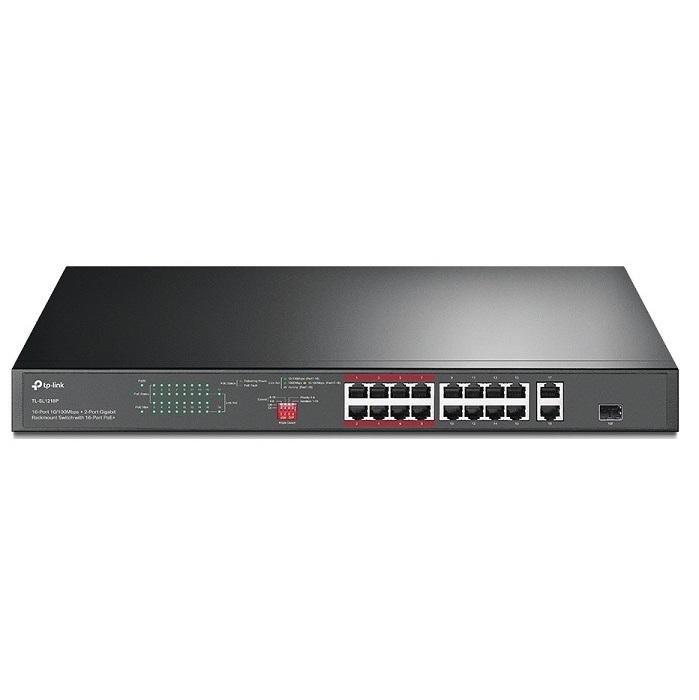

16-Port PoE+ 10/100Mbps + 2-Port Gigabit Switch TP-LINK TL-SL1218P
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
- High PoE power budget with up to 30W for each PoE port and 150W for all PoE ports.
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Interface | 16× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 1× Combo Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Ports 1–16 PoE Power Budget: 150 W |
| Dimensions (W x D x H) | 440 × 180 × 44 mm |
| Max Power Consumption | 12.7 W (no power device connected) 172.8 W (with 150W power devices connected) |
| Max Heat Dissipation | 43.3 BTU/h (no power device connected) 589.3 BTU/h (with 150W power devices connected) |
| PERFORMANCE | |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 36 tháng.
