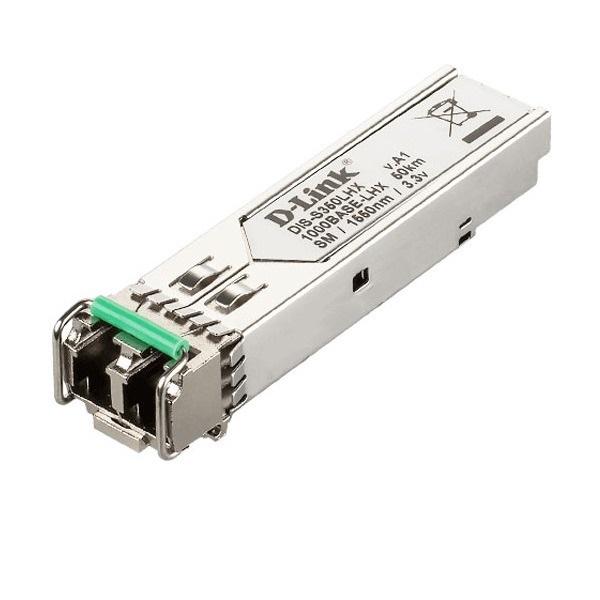

1‑port Mini-GBIC SFP to 1000BaseLX Single Mode Fiber Transceiver D-Link DIS-S350LHX
- Small Form-factor Pluggable (SFP) for quick installation
- Hot pluggable design for disruption-free network modifications
- 802.3z & Multiple Source Agreement (MSA) compliant for full system compatibility
- Reliable data transmission across distances of up to 50km
- Single-mode fiber
- Duplex LC connector
- -40 ~ 85°C operating temperature
Specifications
| Model | DIS-S350LHX |
| General | |
| Transceiver Type | SFP |
| Cable Type | Single-mode 9/125um fiber |
| Distance | 50km |
| Speed | 1.25Gbps |
| Wavelength | 1550 nm |
| Connector | Duplex LC Connector |
| Single/bi Direction | Single-direction |
| Functionality | |
| IEEE Standard | IEEE 802.3z |
| MSA Compliant | Yes |
| RoHS Compliant | Yes |
| Fiber Channel FC-PI Standard 1 | 100-SM-LL-V |
| Fiber Media Support | Single-Mode |
| Physical | |
| Power | 3.3V |
| Max Input Current | 300mA |
| Operation Temperature | -40~85℃ |
| Storage Temperature | -40~85℃ |
| Humidity (Operating) | 5%~95% |
| Humidity (Storage) | 5%~95% |
| Dimension (W x D x H ) | 13.7 mm x 55.4 mm x 8.5 mm |
| Weight | 20g |
- Bảo hành: 36 tháng.
