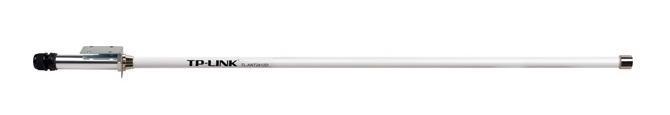

2.4GHz Antenna đẳng hướng Outdoor 12dBi TL-LINK TL-ANT2412D
- Ăng-ten đẳng hướng ngoài trời 12dBi.
- Tần số: 2.4GHz ~ 2.5GHz.
- Trở kháng: 50Ω.
- Độ lợi: 12dBi.
- Hỗ trợ kết nối dạng N.
- 12dBi omni-directional operation highly enlarges the wireless coverage.
- N female connector, compatible with most of the wireless equipments.
- Weather proof design, suitable for all weather condition.
- Provided mounting kits enable easy installation for various environments.
Đặc tính kỹ thuật
Frequency | 2.4GHz ~ 2.5GHz |
Impedance | 50 Ohms |
Gain | 12 dBi |
Radiation | Omni-directional |
VSWR (MAX.) | < 2.0 |
HPOL Beamwidth | 360º |
VPOL Beamwidth | 12º |
Polarization | Linear, Vertical |
Connector Type | N Female |
Mounting | Pole Mount / Wall Mount |
Application | Outdoor |
Lightning Protection | DC Ground |
Operating Temp. | -40ºC ~ 65ºC (-40ºF ~ 149ºF) |
Storage Temp. | -40 ºC ~ 80ºC (-40ºF ~ 176 ºF) |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Safety, Emission and Others | CE, FCC, Compliant with RoHS |
Dimension | 1200mm |
Weight | 0.5kg |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
