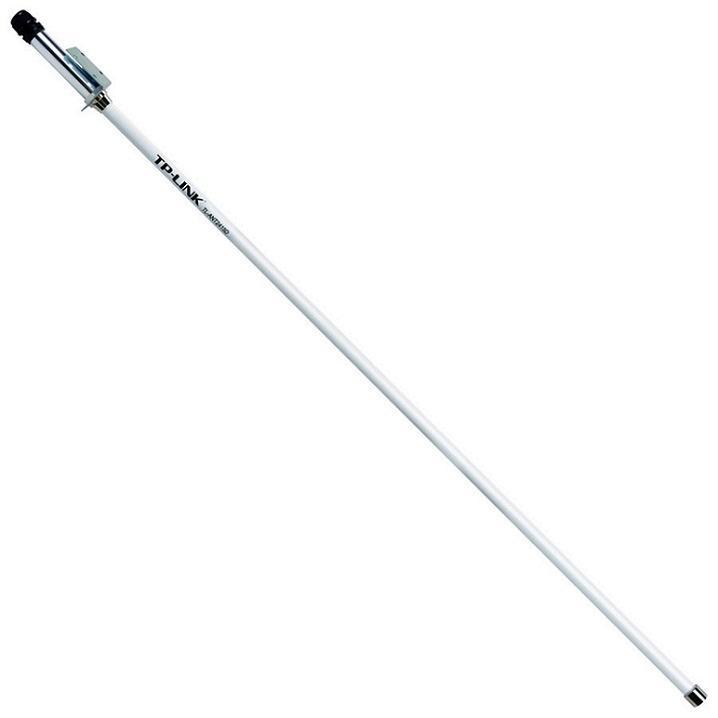

2.4GHz Antenna đẳng hướng Outdoor 15dBi TP-LINK TL-ANT2415D
- Ăng-ten đẳng hướng ngoài trời 15dBi.
- Tần số 2.4GHz ~ 2.5GHz.
- Hỗ trợ kết nối dạng N.
- 15dBi omni-directional operation highly enlarges the wireless coverage.
- N female connector, compatible with most of the wireless equipments.
- Weather proof design, suitable for all weather condition.
- Provided mounting kits enable easy installation for various environments.
- Kích thước: 1500mm.
- Trọng lượng: 0.6kg.
Đặc tính kỹ thuật
Frequency | 2.4GHz ~ 2.5GHz |
Impedance | 50 Ohms |
Gain | 15 dBi |
Radiation | Omni-directional |
VSWR (MAX.) | < 2.0 |
HPOL Beamwidth | 360º |
VPOL Beamwidth | 9º |
Polarization | Linear, Vertical |
Mounting | Pole Mount / Wall Mount |
Application | Outdoor |
Lightning Protection | DC Ground |
Operating Temp | -40ºC ~ 65ºC (-40ºF ~ 149 ºF) |
Storage Temp | -40ºC ~ 80ºC (-40ºF ~ 176 ºF) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
Safety, Emission and Others | CE, FCC, Compliant with RoHS |
Package Contents | 15dBi Outdoor Omni-directional Antenna |
Installation mounting kits | |
User Guide | |
Dimension | 1500mm |
Weight | 0.6kg |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
