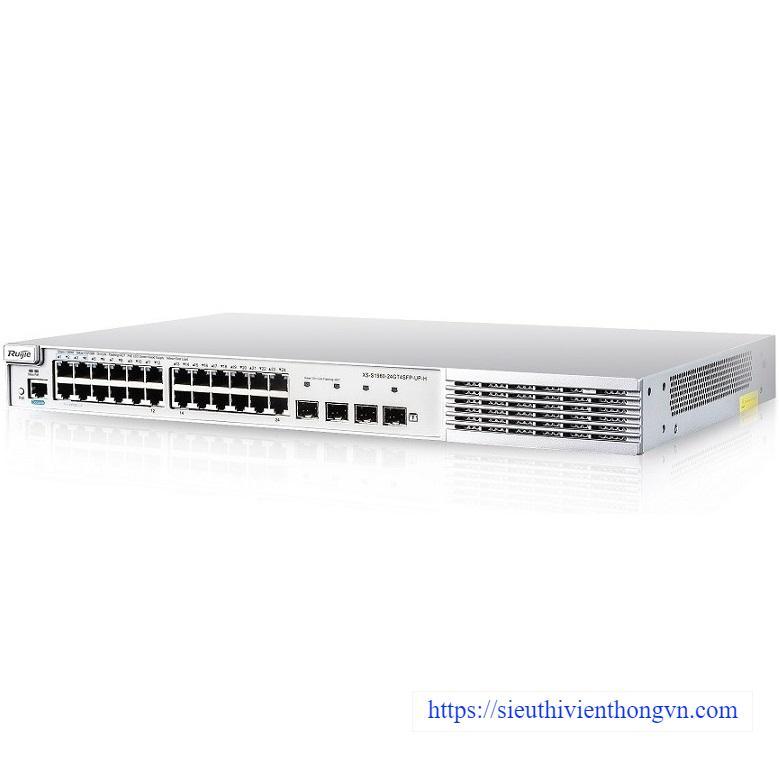

24-port 10/100/1000 Base-T Managed PoE Switch RUIJIE XS-S1960-24GT4SFP-UP-H
- 24 cổng PoE, tổng công suất 370W
- HPoE: cổng 1-4
- 4 cổng 1000M SFP ports
- CPU Memory: 512MB
- Flash: 256MB
- Tốc độ chuyển mạch: 128Gbps
- Nguồn điện: 100~240VAC, 50/60Hz
- Kích thước: 440 × 260 × 44 mm
- Nhiệt độ hoạt động: 0°C~50°C
- Dễ dàng quản lý và cấu hình qua Ruijie cloud
- Tích hợp Web management
- Hỗ trợ IEEE802.1Q/MAC VLAN/Private VLAN/Protocol VLAN/Voice VLAN
- Các chứng nhận: EN 60960-1,EN 55022, EN55032, EN 55024, EN 61000-4-2, EN 61000-4-3, N 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-3-2, EN 61000-3-3.
Đặc tính kỹ thuật
| Model | XS-S1960-24GT4SFP-UP-H |
| Ports | 24 x 10/100/1000BASE-T ports (PoE/PoE+) 4 x Gigabit SFP ports (non-combo) uplink Port 1-4 for HPoE |
| Fan Slots | Fixed |
| Management Ports | 1 console port |
| Switching Capacity | 128Gbps |
| Packet Forwarding Rate | 42Mpps/96Mpps |
| Port Buffer | 1.5MB |
| ARP Table | 500 |
| MAC Address | 16K |
| Routing Entries | 500 |
| IP Host Entries (IPv4/IPv6) | 500 (IPv4/IPv6) |
| ACL Entries | Up to 1500 |
| ACL | Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect |
| QoS | Support |
| VLAN | 4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP |
| QinQ | Basic QinQ, Flexible QinQ, 1:1 VLAN switching |
| Link Aggregation | AP, LACP, Flow balance |
| Port Mirroring | Many-to-one mirroring, One-to-Many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN |
| Spanning Tree Protocols | IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC filter, TC protection, LOOP guard, ROOT guard |
| DHCP | DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay |
| Multiple Spanning Tree Protocol (MSTP) Instances | 64 |
| Maximum Aggregation Port | 128 |
| Multicast | IGMP v1/v2 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave |
| EEE Format | Support IEEE 802.3az standard |
| L2 Features | MAC, EEE, ARP, VLAN, QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel |
| Layer 3 Features | IPv4 static routing, IPv6 static routing, RIP, RIPng, ARP proxy, Neighbor Discovery |
| Layer 3 Protocols (IPv4) | Static routing, RIP, RIPng |
| IPv4 Features | Ping, Traceroute |
| IPv6 Features | 0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head |
| IPv6 Routing Protocols | Static routing, RIPng |
| Other Protocols | FTP, TFTP, DNS client, DNS static |
| Dimensions | 440×260×44 mm |
| Lightning Protection | 6KV |
| Power Supply | 100V to 240V AC |
| PoE Power Budget | 370W |
- Bảo hành: 3 năm.
