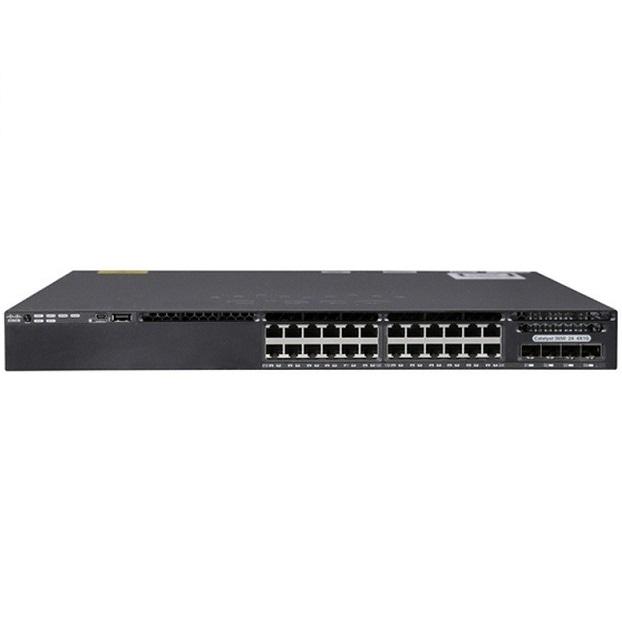

24-Port 10/100/1000Mbps + 4 x Gigabit SFP IP Base Switch Cisco WS-C3650-24TS-S
- The Cisco Catalyst 3650 Series Switch, with Cisco StackWise-160 Technology, can stack 9 switches and support up to 160 Gpbs stack bandwidth.
- The WS-C3650-24TS-S integrates with 24 Ethernet ports and 4 x 1G SFP uplink ports in IP Base feature set.
Specifications
| Model | WS-C3650-24TS-S |
| Feature Set | IP Base |
| Ports | 24 x 10/100/1000 Ethernet 4 x SFP Gigabit Uplink |
| Max. stacking number | 9 |
| Stack bandwidth | 160 Gpbs |
| Forwarding Bandwidth | 65.47 Mpps |
| Switching Capacity | 88 Gbps |
| Jumbo Frame Support | 9198 bytes |
| RAM | 4GB |
| Flash Memory | 2GB |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| MAC Address Table Size | 32000 entries |
| Advanced Switching | Layer 3 |
| Routing Protocol | OSPF, RIP-1, RIP-2, static IP routing, RIPng |
| Features | VLAN, ARP, ACL, QoS, Multiple Spanning Tree, DHCP, LACP, IGMP, Port Aggregation Protocol (PAgP), Uni-Directional Link Detection (UDLD), Remote Switch Port Analyzer (RSPAN), trunking, Dynamic ARP Inspection (DAI), EIGRP Stub Routing, Energy Efficient Ethernet, Flexible NetFlow (FNF), MLD snooping |
| Remote Management Protocol | CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Number of AP per switch/stack | 25 |
| Number of wireless clients per switch/stack | 1000 |
| Power Supply | 110 to 220 VAC |
| Power Consumption | 250W |
| Dimensions | 44.5 cm x 44.5 cm x 4.4 cm |
| Weight | 17.49kg |
- Bảo hành: 12 tháng.
