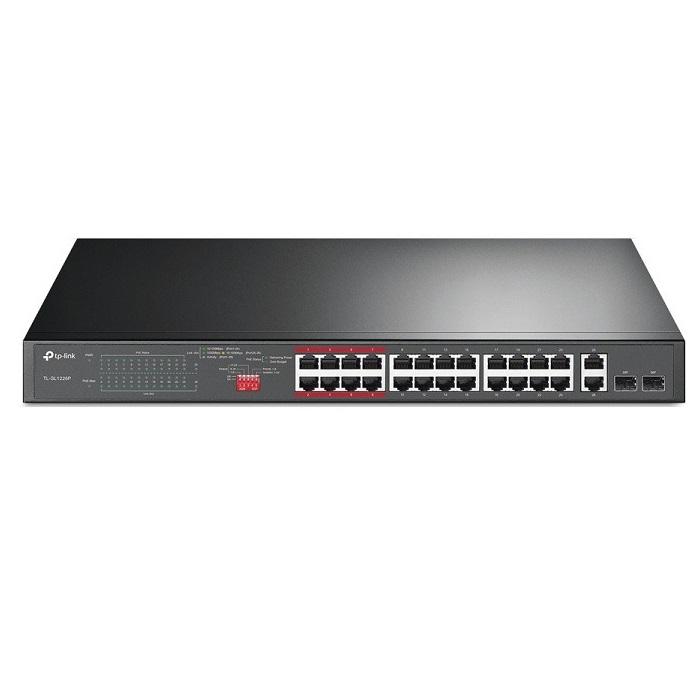

24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch TP-LINK TL-SL1226P
- 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
- High PoE power budget with up to 30W for each PoE port and 250W for all PoE ports
- Up to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system
- Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play, with no configuration and installation needed
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Interface | 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Backup Bandwidth | 8.8 Gbps |
| Packet Forwarding Rate | 6.5472 Mpps |
| PoE+ Ports (RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W |
| Mac Address Table | 8K |
| Jumbo Frame | 10KB |
| Switching Capacity | 8.8Gbps |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation | 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Environment | Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing |
- Bảo hành: 36 tháng.
