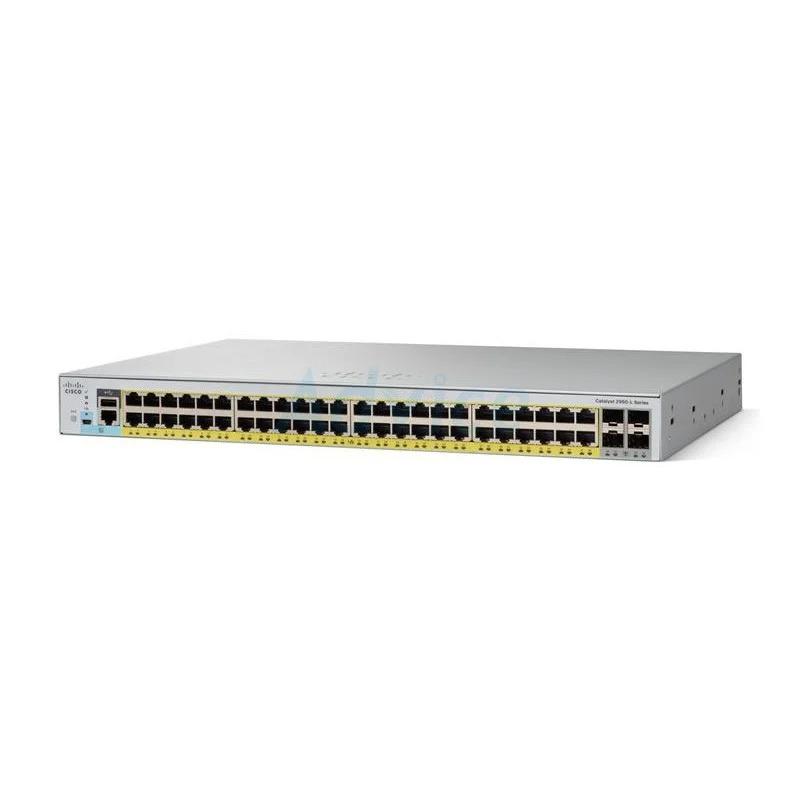

48-port 10/100/1000 Ethernet + 4-port 1G SFP Uplink Switch Cisco C1000-48T-4G-L
- Cisco C1000-48T-4G-L is one of the Cisco Catalyst 1000 Series Switches. Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices.
- Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
- Support 48 x 10/100/1000 Ethernet ports, 4 x 1G SFP uplinks.
- CPU: ARM v7 800MHz.
- DRAM: 512 MB.
- Flash memory: 256 MB.
- Dimensions (WxDxH): 17.48 x 10.73 x 1.73 inch.
Đặc tính kỹ thuật
| Model | C1000-48T-4G-L |
| General | |
| Gigabit Ethernet / FE ports | 48 10/100/1000 RJ45 Data |
| Uplink interfaces | 4 SFP |
| Fanless | Y |
| Dimensions (WxDxH) | 17.48 x 10.73 x 1.73 inch |
| Weight | 3.95 kg |
| Console ports | |
| RJ-45 Ethernet | 1 |
| USB mini-B | 1 |
| USB-A port for storage and Bluetooth console | 1 |
| Memory and processor | |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Performance | |
| Forwarding bandwidth | 52 Gbps |
| Switching bandwidth | 104 Gbps |
| Forwarding rate (64‑byte L3 packets) | 77.38 Mpps |
| MAC addresses | 16000 |
| IPv4 unicast direct routes | 542 |
| IPv4 unicast indirect routes | 256 |
| IPv6 unicast direct routes | 414 |
| IPv6 unicast indirect routes | 128 |
| IPv4 multicast routes and IGMP groups | 1024 |
| IPv6 multicast groups | 1024 |
| IPv4/MAC security ACEs | 600 |
| IPv6 security ACEs | 600 |
| Maximum active VLANs | 256 |
| VLAN IDs available | 4094 |
| Maximum STP instances | 64 |
| Maximum SPAN sessions | 4 |
| MTU-L3 packet | 9198 bytes |
| Jumbo Ethernet frame | 10,240 bytes |
| Dying Gasp | Yes |
| MTBF in hours (data) | 1,452,667 |
| MTBF in hours (PoE) | 856,329 |
| MTBF in hours (Full PoE) | 856,329 |
| Safety and compliance | |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011 |
| EMC: Emissions | 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A |
| EMC: Immunity | EN55024 (including EN 61000-4-5), EN300386, KN35 |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| U.S. government certifications | USGv6 and IPv6 Ready Logo |
| Connectors and interfaces | |
| Indicator LEDs | Per-port status: link integrity, disabled, activity |
| System status: System | |
| Console cables | CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 |
| CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors | |
| Power | Use the supplied AC power cord to connect the AC power connector to an AC power outlet Models have external power supply |
- Bảo hành: 12 tháng.
