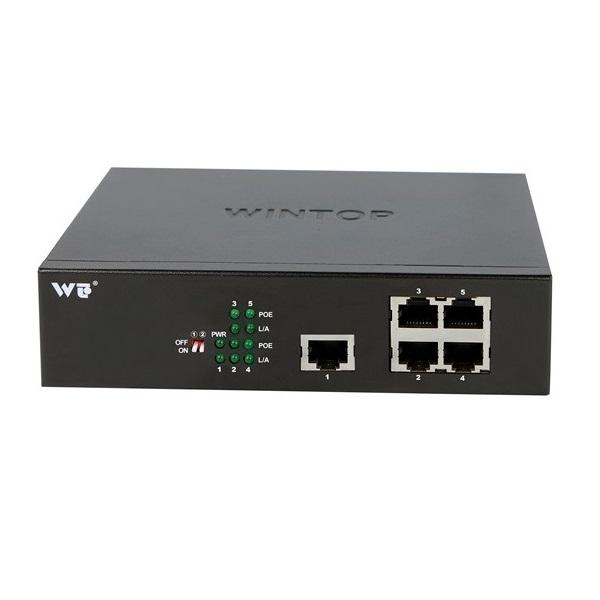

4-port 10/100Base-T(X)+1-port 10/100/1000Base-T(X) Switch WINTOP YT-DS105-1GT4T
- 1 Gigabit Ethernet ports, 4 Fast Ethernetports.
- Fanless design, IP30 protection grade, Impact resistant metal shell.
- Applicable voltage range 100~240V AC.
- Meet the requirements of electromagnetic compatibility EMC industrial grade 4 (anti-lighting, static electricity, surge, group pulse).
- All port anti-lighting 6KV.
- Working temperature: -20℃~60℃.
Đặc tính kỹ thuật
| Model | YT-DS105-1GT4T |
| Interface | Ethernetinterface:10/100/1000Mbps, Full/ Halfduplex mode,support MDI/MDI-X. transmission distance common mode 0-100m; LEDindicator:PWR,Link/ACT, SPD |
| Switch Properties | Backboard bandwidth: 10Gbps MAC address table:8K Message cache size:1Mbits Oversized frame rate:10 KB Packet forwarding rat:7.5Mpps |
| Power Supply | Input voltage:100~240V AC Input current: Max50mA |
| Physical Properties | Housing: metal, IP30protection Dimension: 185mm x 140mm x 42mm Weight :700g Installation mode: desktop installation, wall-mounted installation |
| Environmental Constraint | Working temperature: -20 ~ 60°C (-4 ~ 140°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing) |
| Standards and certification | Electromagnetic interference (EMI): FCC Part 15/CISPR22(EN55022): Class A Electromagnetic sensibility (EMS): IEC61000-4-2 (ESD) 4class， IEC 61000-4-3 (RS) 3class， IEC 61000-4-4 (EFT) 4class， IEC 61000-4-5 (Surge) 4class， IEC 61000-4-6 (CS) 3class Vibration resistance: IEC 60068-2-6 Impact resistance: IEC 60068-2-27 Free falling: IEC 60068-2-32 MTBF(mean time between failures) Time: 500000h |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
