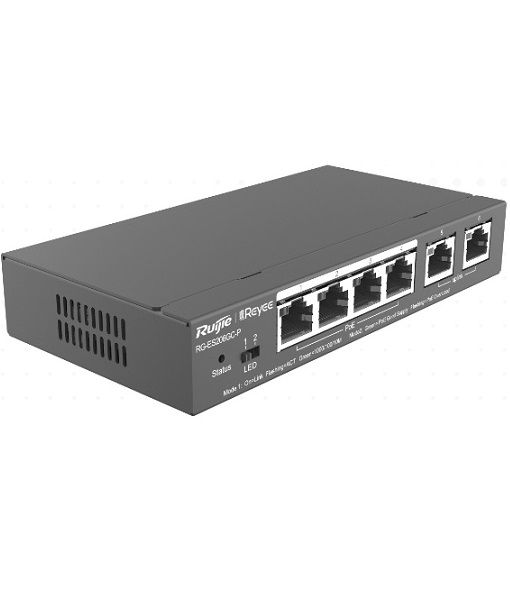

4-Port Gigabit PoE+2-Port Gigabit Uplink Smart Cloud Switch RUIJIE RG-ES206GC-P
- Support 4 10/100/1000 Base-T ports (PoE/PoE+) and 2 10/100/1000 Base-T uplink port.
- Switching capacity: 12Gbps.
- Switching Cache: 1Mbit.
- Package forwarding rate: 8.9Mpps.
- PoE Standard: IEEE 802.3at/802.af.
- PoE Power Budget: 54W.
- Dimensions (W x D x H): 148 x 78 x 26 mm.
Specifications
| Switching capacity | 12Gbps |
| Switching Cache | 1Mbit |
| Package forwarding rate | 8.9Mpps |
| Ports | 4 10/100/1000 Base-T ports (PoE/PoE+) 2 10/100/1000 Base-T uplink port |
| PoE Standard | IEEE 802.3at / 802.af |
| PoE Power Budget | 54W |
| Speed / Duplex mode | Auto / Half / Full duplex Speed auto / 10/ 100 /1000 |
| MAC address | 4K |
| Maximum Number of VLANs | 16 |
| Allowed VLAN ID | 1 ~ 4094 |
| Port-based VLAN | Support |
| Flow Control | Support |
| Loop Protection | Support |
| Unknown Unicast Suppression | Support |
| Multicast / Broadcast Storm Suppression | Support |
| Mirroring | Many-to-One Mirroring |
| Port Isolation | Support |
| Cable Testing | Support |
| ICMP Ping | Support |
| DNS | DNS Client |
| Telnet | Support |
| MACC | Support |
| Port Surge | Common mode: 4KV |
| Electrostatic Discharge | Air discharge: 6KV Contact discharge: 4KV |
| Power Consumption | ≤ 60W |
| Power supply | External power adapter: 100-240V |
| Dimensions (W x D x H) | 148mm x 78mm x 26mm |
| Weight | 0.9 kg (with package) |
| MTBF | >200K |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Operating Altitude | -500 ~ 5000 meters |
| FAN | Fanless |
| Management | Support management and configuration through web management interface, MACC cloud platform and mobile app |
| Safety Standard Ground Resistance | GB4943-2011, EN 62638-1 |
| EMC | GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035 |
- Bảo hành: 3 năm.
