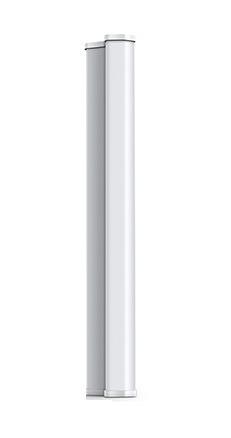

5GHz Antenna 2 x 2 MIMO Outdoor 19dBiTP-LINK TL-ANT5819MS
- Ăng ten Sector MIMO 2 x 2 ngoài trời 19dBi.
- Độ rộng tia HPOL, VPOL: 120º (6dB) và 90º (3dB).
- Tần số: 5 - 6GHz.
- Tốc độ gió: 241km/h.
- Độ lợi: 19dBi.
- High-gain directional antenna provides wide-area coverage, ideal for Point-to-Multi-Point connections.
- Easy installation and seamless integration with the Pharos Base Station WBS510.
- MIMO technology ensures increased throughput.
- Weatherproof design offers protection in harsh environments.
- Kích thước: 700 x 133 x 57mm.
Specifications
Frequency | 5.0 - 6.0 GHz |
Impedance | 50Ω |
Gain | 19dBi |
VSWR (MAX.) | 1.8 Max |
HPOL Beamwidth | 120º (6dB) & 90º (3dB) |
VPOL Beamwidth | 120º (6dB) & 90º (3dB) |
Polarization | Vertical & Horizontal |
Mounting | Pole Mount |
Elevation Beamwidth | 4º |
Electrical Downtilt | 0º |
F/B Ratio | 28dB Min |
Survival Wind Speed | 241km/h |
Standards | RoHS,WEEE |
Interfaces | RP-SMA |
Dimension | Product Size:700 x 133 x 57mm |
Package Size:1030 x 185 x 140mm |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
