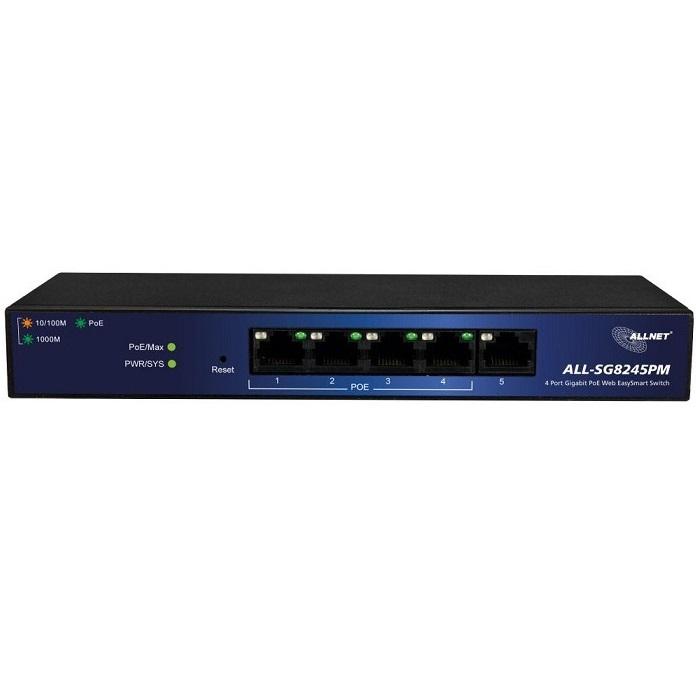

5-port Gigabit Ethernet with 4 PoE+ ports Smart-lite Switch ALLNET ALL-SG8245PM
- 5-port 10/100/1000Mbit/s Gigabit Ethernet Switch with 4x PoE Ausgabe (802.3af)
- PoE Budget ca. 70W for max. 4 Devices, support max. 30 per Port IEEE802.3at
- VLAN and QoS support
- Easy Smart-Managed
- Fanless-Design
Specifications
| Model | ALL-SG8245PM |
| Switch working | Layer 2-Switch, Web easy smart managed |
| Switch-Type | Standalone |
| Standards | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3az EEE IEEE802.3ad Link Aggregation IEEE802.1q VLAN IEEE802.1p-based QoS |
| Ports | 5x RJ45 10/100/1000BaseT(X) 4x PoE IEEE802.3at max. 30W per Port |
| Special | 4x PSE Port for PoE Devices |
| Uplink | Yes |
| Full Duplex Mode | Yes |
| Buffer Memory | 1Mbit |
| Jumbo Frames | 9216byte |
| MAC adress table | 2K |
| Filtering/Forwarding | Store-and-Forward |
| Mirror | Port mirroring both on ingress and egress traffic |
| VLAN | 802.1Q VLAN Port-based VLAN |
| LACP | Link Aggregation = IEEE802.3ad |
| Multicast | Blocking of unknown multicast traffic |
| Qos | IEEE802.1p-based QoS Port-based QoS Scheduling Method = WFQ or SP |
| IGMP Snooping | IGMPv1, v2, v3 |
| Security | STP / Self Loop Support/ Broadcast Storm Control Support |
| Power-Input | AC to DC external power adapter Input: 100~240VAC Output: 55VDC/ 1,3A |
| Dimensions | 193 x 84 x 26 mm |
