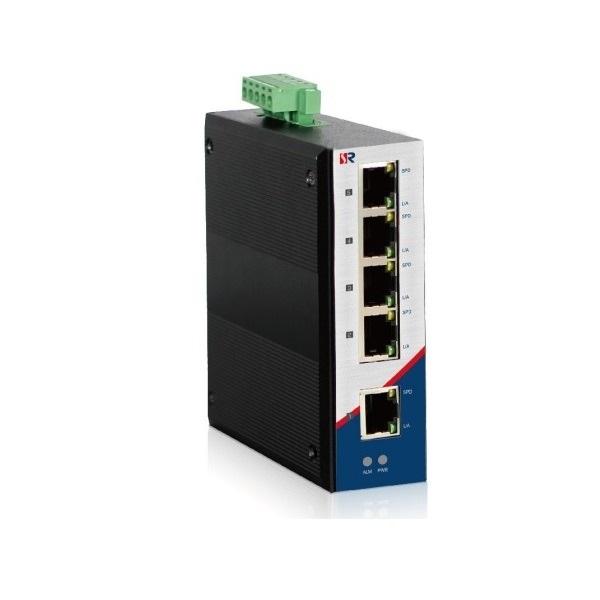

5-port Industrial DIN-Rail PoE Switch WINTOP YT-RS205-1F4T-AT

5-port Industrial DIN-Rail PoE Switch WINTOP YT-RS205-1F4T-AT

- Supports 4x10/100Base-T(X) PoE (P.S.E) and 1x100BaseFX.

- Supports auto-negotiation and auto-MDI/MDIX.

- Support P.S.E based on IEEE802.3at standard up to 30 Watts per port.

- Industrial 4 grade.

- With IP40 Alumimum housing protection and DIN-Rail design.

Specification

- Standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseT, IEEE 802.3u 100BaseFX.

- Agreement

   + IGMP Snooping, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, HTTPS, SSH, Telnet, Syslog, LLDP, LACP, DHCP Client, EtherNet/IP, Modbus/TCP.

   + MIB: MIB-II; BRIDGE MIB; MIB; IF MIB; RMON MIB Group 1,2,3,9.

- Physical Characteristics

   + Housing: Aluminum, IP40 Protection.

   + Size: 110 x 95 x 30 mm.

   + Weight: 350g.

   + Installation: DIN-Rail mounting.

- Enviroment

   + Operating temperature: -40~85°C (-40~185°F).

   + Storage temperature: -40~85°C (-40~185°F).

   + Ambient relative humidity: 5~95% (non-condensing)

- Switch Property

   + Switching bandwidth: 1Gbps.

   + Packet Buffer Size: 512Kb.

   + MAC table size: 4K.

   + Jumbo Frames: 2K Bytes.

- Port

   + Fiber Ports: 100Mbps (SC)

   + RJ45 Port: 10/100Mbps, Full/Halfduplex, MDI/MDI-X.

   + LED Light: PWR, ALM, L/A, SPD.

- Power requirement

   + Input Voltage: 46~75V DC, Redundant dual inputs.

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
