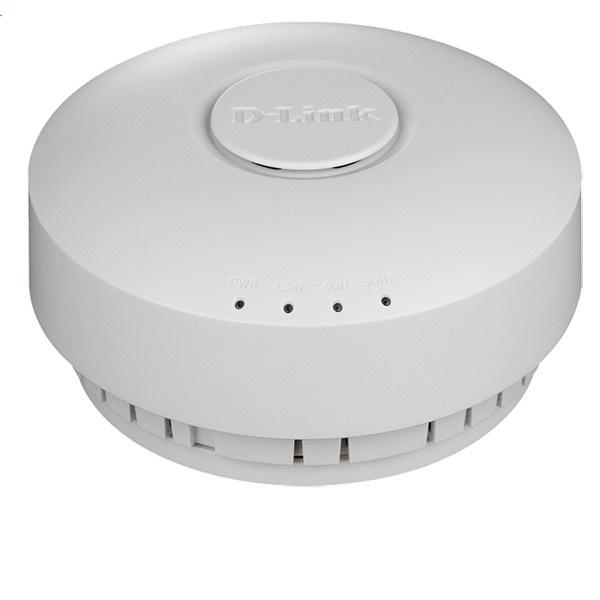

600Mbps Dual-band Gigabit Unified PoE Access Point D-Link DWL-6600AP/EEUPC

600Mbps Dual-band Gigabit Unified PoE Access Point D-Link DWL-6600AP/EEUPC

  • MS 000013626
  • D-Link
Giá : Liên hệ

600Mbps Dual-band Gigabit Unified PoE Access Point D-Link DWL-6600AP/EEUPC

600Mbps Dual-band Gigabit Unified PoE Access Point D-Link DWL-6600AP/EEUPC

-600Mbps Dual-band Gigabit Unified PoE Access Point (5dBi internal antenna for 2.4GHz, 6dBi internal antenna for 5GHz, 802.3af PoE, PoE Injector is NOT included) Standalone/Managed mode, Plastic Housing.

-The DWL-6600AP/EEUPC Unified N Dual-band PoE Access Point is a best-in-class indoor access point designed specifically for business-class environments.

-With high data transmission speeds and access point load balancing, the DWL-6600AP/EEUPC offers high-quality and reliable wireless service.

-Versatile and powerful, the DWL-6600AP/EEUPC can be flexibly deployed as a standalone wireless access point or as a managed access point controlled by a D-Link® Unified Wireless Switch or Wireless Controller.

-Businesses can start with standalone mode deployment, then migrate to a centrally managed system anytime later.

Enhanced Performance

-The DWL-6600AP/EEUPC delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in either the 2.4 GHz or 5 GHz mode.

-Support for Wi-Fi Multimedia™ (WMM) Quality of Service features makes the DWL-6600AP/EEUPC an ideal access point for audio, video, and voice application.

-In addition, the load balancing feature ensures maximum performance and best service quality in the wireless environment1.

Self-Configuring Cluster

-For small businesses that need to deploy multiple access points (APs) but lack the resources to tackle the complicated task of network management, the DWL-6600AP/EEUPC’s self-configuring cluster feature offers the ideal solution.

-When several DWL-6600AP/EEUPC are deployed on the network, they can be organized to form a self-configuring cluster.

-The administrator can configure one access point and apply the same arrangement to all remaining APs.

-Up to 16 APs may be used to form a cluster.

Unified Management

-The DWL DWL-6600AP/EEUPC can operate in conjunction with a D-Link Wireless Switch and Wireless Controller.

-In this mode, multiple DWL-6600AP/EEUPC can connect directly or indirectly to one of these switches/ controllers to provide unparalleled security and wireless mobility for wireless clients.

-Each DWL-6600AP/EEUPC will be continually tuned by these switches to provide the optimal RF channels and transmission power for all mobile clients, giving them the best wireless signals in both 2.4GHz and 5.0GHz bands and uninterrupted wireless connectivity.

Security

-The DWL-6600AP/EEUPC supports the latest standards in wireless security, including WEP, WPA, WPA2, and 802.1X. In addition, the DWL-6600AP/EEUPC supports up to 16 virtual access points (VAP) per radio, for a total of 32 VAPs, allowing the administrator to assign different access privileges to different groups of users.

-When Station Isolation is enabled, the AP blocks communication between wireless clients on the same radio and VAP.

-When used with D-Link’s line of Unified Wireless Switches, security is strengthened.

-Administrators will be immediately notified of any security threats arise and when rogue APs in the network are detected.

Automatic RF Management

-When a number of access points are deployed close to each other, interference may result if proper RF management is not implemented.

-When a DWL-6600AP/EEUPC senses any neighbor AP at startup, it will automatically select a non-interfering channel, the DWL-6600AP/EEUPC will automatically lower its transmission power to minimize interference.

-When that managed AP is no longer present, the DWL-6600AP/EEUPC will increase it’s transmit power to expand coverage.

Quality of Service

-The DWL-6600AP/EEUPC is WMM-certified, so in the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.

-Furthermore, when a number of DWL-6600AP/EEUPC are in close proximity with each other, an access point can refuse new association request once its resources are fully utilized.

-Instead, the association request will be picked up by a neighboring AP.

-This feature ensures that no single AP is over burdened while other APs nearby sit idle.

Convenient Installation

-With an embedded antenna and simple styled exterior, the DWL-6600AP/EEUPC can be installed on a wall or ceiling and blends in with most interior decorations in an office.

-Enclosed in a plenum-rated chassis, the DWL-6600AP/EEUPC adheres to strict fire codes for placement in air passageways.

-For easy installation, the DWL-6600AP/EEUPC has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.

Technical Specifications

Wi-Fi Interface802.11a/b/g/n 2.4/5.0 GHz
LAN Interface10/100/1000 Gigabit Ethernet
ConsoleRJ-45
Antenna2x2 MIMO embedded antenna with 4 external antenna connectors
Power MethodIEEE 802.3af Power Over Ethernet or external power adapter
Wireless Frequency802.11n: 2.4 to 2.497 GHz and 4.9 to 5.85 GHz
802.11b/g: 2.4 to 2.4835 GHz
802.11a: 5.15 to 5.35 GHz and 5.725 to 5.825 GHz
Data Transfer Rate802.11n: 6.5 Mbps-130 Mbps (20 MHz), 6.5 MHz-300 Mbps (40 Mbps)
802.11a/g: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
802.11b: 11, 5.5, 2 and 1 Mbps
Operation Channel (2.4 GHz)5.0 GHz: 12 Non-Overlapping Channels for US and Canada
2.4 GHz: 11 channels for United States
System ManagementHTTP/HTTPS Web-based User Interface
SNMP, SSH, Telnet Command Line
Security
SSID16 SSID per frequency band, 32 SSID per AP
Station Isolation
Wireless SecurityWEP
Dynamic WEP
WPA Personal/Enterprise
WPA2 Personal/Enterprise
Detection & PreventionRogue and Valid AP Classification
AuthenticationMAC Address Filtering
802.1x
Physical & Environmental
Power Adapter12 V 1 A
Power over Ethernet48 VDC +/- 10%
Stand-Alone ModeWEP/WPA/WPA2 Security
Rogue AP Detection
Station Isolation
MAC Address Filtering
AP Load Balancing Setup
WDS
AP Clustering
QoS/WMM
Local Storage Configuration
Managed ModeCentralized Management
(Managed by D-Link Wireless Switch/Wireless Controller)Centralized Firmware Dispatch
Visualized AP Management Tool
Auto-Power Adjustment
Dynamic Auto-Channel Selection
L2 Fast Roaming
L3 Fast Roaming
Captive Portal
WEP/WPA/WPA2 Security
Rogue AP Detection
Rogue AP Mitigation
WIDS
Station Isolation
MAC Address Filtering
AP Load Balancing Setup
WDS
QoS/WMM
Dimensions156 x 77.5 mm
Weight0.5kg
Operating Temperature32°F to 104°F (0° to 40°C)
Operating Humidity10% to 90% non-condensing
EMI/EMC/RFFCC Class B
CE Class B
C-tick
IC
VCCI
NCC
TELEC
Wi-Fi
SafetycUL, LVD (EN60950-1), UL2043
MTBF497,476 hours

-Bảo hành 24 tháng.
