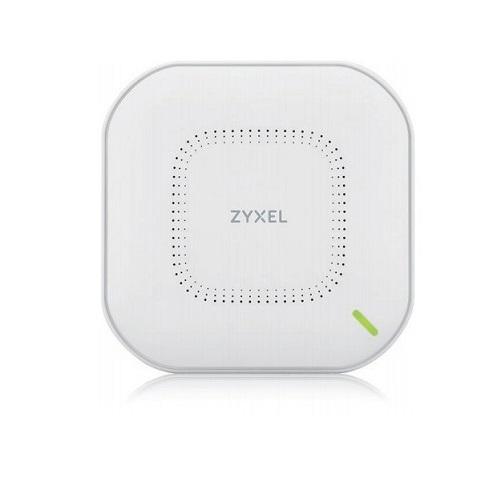

802.11ax (WiFi 6) Dual-Radio PoE Access Point ZyXEL NWA1100AX
- Standard: IEEE 802.11 ax/ac/n/g/b/a.
- Frequency band:
+ 2.4 GHz (IEEE 802.11 b/g/n): 2.412 to 2.472 GHz;
+ 5 GHz (IEEE 802.11 a/n/ac): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz.
- Ethernet port: 1 x 10/100/1000M LAN.
- Power:
+ PoE (802.3)at: Power draw 17W;
+ DC input: 12VDC/ 1.5A.
- Bandwidth: 20-, 40-, 80-MHz.
- Minimum receive sensitivity: Min. Rx sensitivity up to -101dBm.
- Dimensions (WxDxH): 180 x 180 x 39 mm.
- Weight: 453g.
Specifications
| Model | NWA1100AX |
| Wireless | |
| Standard | IEEE 802.11 ax/ac/n/g/b/a |
| MIMO | MU-MIMO |
| Wireless speed | - 2.4 GHz: 575 Mbps - 5 GHz: 1200 Mbps |
| Frequency band | - 2.4 GHz (IEEE 802.11 b/g/n): 2.412 to 2.472 GHz - 5 GHz (IEEE 802.11 a/n/ac): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz |
| Bandwidth | 20-, 40-, 80-MHz |
| Conducted typical transmit output power | 20/22 dBm |
| RF Design | |
| Antenna type | 2x2 + 2x2 MIMO embedded antenna |
| Antenna gain | - 2.4 GHz: Peak gain 5 dBi - 5 GHz: Peak gain 6 dBi |
| Minimum receive sensitivity | Min. Rx sensitivity up to -101 dBm |
| WLAN Feature | |
| Band steering | Yes |
| WDS/Mesh | Yes (V6.10) |
| Fast roaming | Pre-authentication, PMK caching and 802.11r/k/v |
| DCS | Yes |
| Load balancing | Yes |
| Security | |
| Encryption | WEP/WPA/WPA2-PSK/WPA3 |
| Authentication | WPA/WPA2/WPA3-Enterprise/EAP/IEEE 802.1X/RADIUS authentication |
| Access management | L2-isolation/MAC filtering |
| Networking | |
| IPv6 | Yes |
| VLANs | Yes |
| WMM | Yes |
| U-APSD | Yes |
| DiffServ marking | Yes |
| Management | |
| Operating mode | Cloud managed/standalone |
| ZON Utility | - Discovery of Zyxel switches, APs and gateways - Centralized and batch configurations + IP configuration + IP renew + Device reboot + Web GUI access + Firmware upgrade + Password configuration + Device locating |
| Zyxel Wireless Optimizer | - WiFi AP planning - WiFi coverage detection - Wireless health management |
| Web UI/CLI | Yes |
| SNMP | Yes |
| Physical Specifications | |
| Dimensions (WxDxH) | 180 x 180 x 39 mm |
| Weight | 453g |
| Included accessories | - Mount plate - Mounting screws - Power adapter |
| MTBF (hr) | 635837 |
| Physical Interfaces | |
| Ethernet port | 1 x 10/100/1000M LAN |
| Power | - PoE (802.3)at: power draw 17 W - DC input: 12 VDC 1.5 A |
| Environmental Specifications | |
| Operating Temperature | 0°C to 50°C/32°F to 122°F |
| Operating Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -30°C to 70°C/-22°F to 158°F |
| Storage Humidity | 10% to 90% (non-condensing) |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
