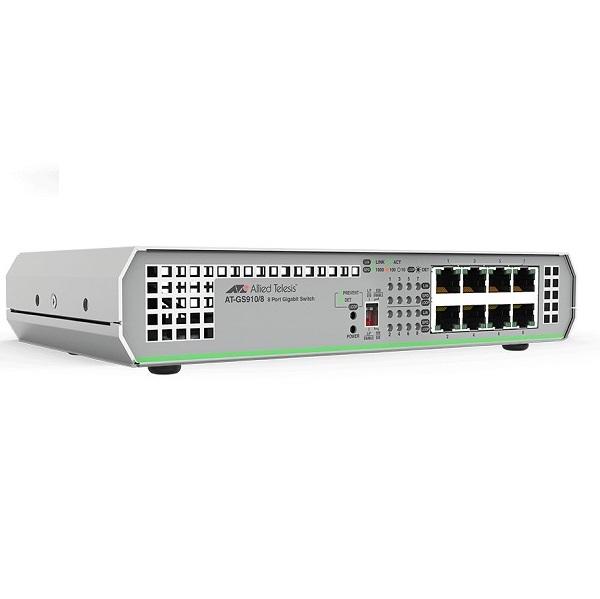

8-port 10/100/1000T Gigabit Ethernet Unmanaged Switch ALLIED TELESIS AT-GS910/8-10
- 8 ports 10/100/1000T.
- Power-saving features on each port including: cable length detection and power minimization, link-down power savings.
- Wirespeed performance.
- Non-blocking architecture.
- Auto-negotiation Gigabit ports.
- Auto MDI/MDI-X on TX ports.
- Full-duplex flow control.
- Sturdy metal case.
- Silent operation; fanless.
- Operating temperature 0-50°C.
- EAP/BPDU passthrough.
Đặc tính kỹ thuật
| Performance | |
| Ethernet | 14880pps for 10Mbps |
| Fast Ethernet | 148800pps for 100Mbps |
| 1488000pps for 1000Mbps Ethernet | |
| Default aging time | 200-600 seconds |
| MAC addresses | 4K |
| Packet bufer | 128 Kb |
| Jumbo Frames | 9216 bytes |
| Switching capacity | 16 Gbps |
| Throughput | 11.9 Mpps |
| Support | Half/full-duplex, Auto negotiation, Auto MDI/MDI-X on all ports |
| Standards and Compliance | |
| IEEE 802.3 | 10Base-T |
| IEEE 802.3u | 100BASE-TXIEEE 802.3ab 1000BASE-T |
| IEEE 802.3x | Flow control |
| IEEE 802.3az | Energy-Efficient Ethernet |
| Interface connections | |
| 10/100/1000T | RJ-45 |
| Power characteristics | |
| Power current | 0.2 A |
| Max power consumption | 4.5 W |
| Environmental Specifications | |
| Operating temperature | 0 to 50ºC |
| Physical Characteristics | |
| Dimensions | 210 × 121 × 38 mm |
| Weight | 0.78 kg |
- Bảo hành: 12 tháng.
