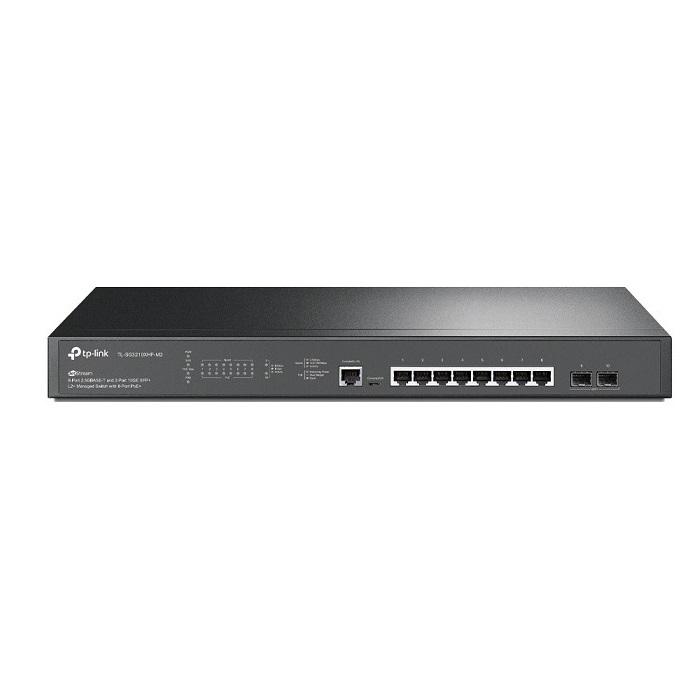

8-Port 2.5G and 2-Port 10GE SFP+ with 8-Port PoE Switch TP-LINK TL-SG3210XHP-M2
- 2.5G PoE+ Ports for WiFi 6: 8× 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
- 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 240W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 240W.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Interface | 8× 100/1000/2500 Mbps RJ45 Ports 2× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port |
| Fan Quantity | 2 |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 440 × 180 × 44 mm |
| Mounting | Rack Mountable |
| Max Power Consumption | 17.2 W (no power device connected) 291.5 W (with 240W power devices connected) |
| Max Heat Dissipation | 58.8 BTU/h (no power device connected) 994.6 BTU/h (with 240W power devices connected) |
| PERFORMANCE | |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16 K |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | 8 priority queues 802.1p CoS/DSCP priority Queue scheduling Bandwidth Control Smoother Performance Action for Flows |
| L2 and L2+ Features | Link Aggregation Spanning Tree Protocol Loopback Detection Flow Control Mirroring |
| L2 Multicast | IGMP Snooping IGMP Authentication MLD Snooping MVR Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | VLAN Group 802.1Q Tagged VLAN MAC VLAN: 7 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) Voice VLAN |
| Access Control List | Time-based ACL MAC ACL IP ACL Combined ACL Packet Content ACL IPv6 ACL Policy ACL apply to Port/VLAN |
| Security | IP-MAC-Port Binding IPv6-MAC-Port Binding DoS Defend Static/Dynamic Port Security Broadcast/Multicast/Unicast Storm Control 802.1X AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control |
| IPv6 | IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications |
| L3 Features | 16 IPv4/IPv6 Interfaces Static Routing Static ARP Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay |
| Management | Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log |
| Advanced Features | Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning) |
- Bảo hành: 36 tháng.
