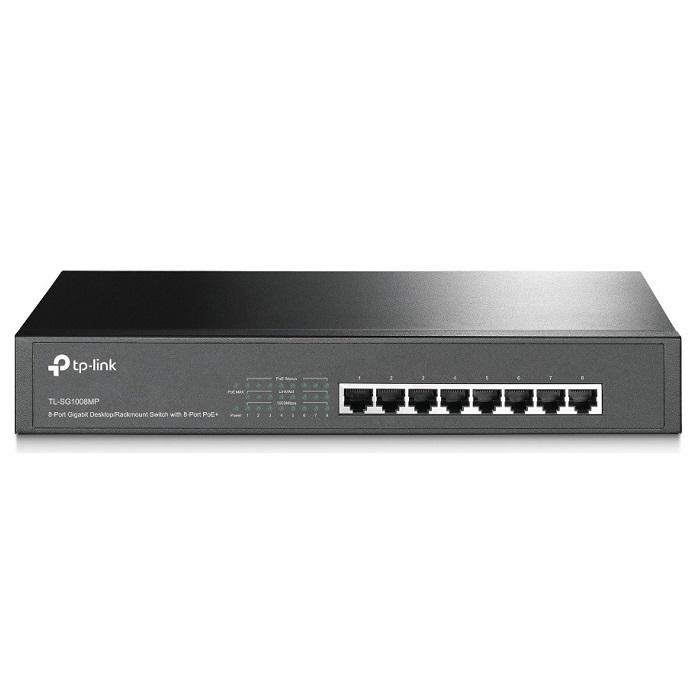

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ TP-LINK TL-SG1008MP
- Features eight 802.3af/at compliant PoE+ ports, with a total PoE power budget of 126W.
- Flexible deployment for PoE supported devices such as wireless access points (APs), IP cameras and IP phones.
- Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs.
- Eight 10/100/1000 Mbps ports provide up to 16 Gbps Switching Capacity.
- 16 KB Jumbo Frame improves performance of large data transfer.
- IEEE 802.3x flow control provides reliable data transfer.
- 802.1p and DSCP QoS ensure smooth traffic.
- IGMP Snooping optimizes multicast applications.
- Just plug & play, no configuration required.
- Auto MDI/MDIX eliminates the need for crossover cables.
- Auto-negotiation intelligently adjusts for compatibility and optimal performance.
Specifications
| Model | TL-SG1008MP |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p |
| Network Ports | 8*10/100/1000 Mbps RJ45 ports with 8 PoE ports |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100_STP (maximum 100 m) 100Base-TX: UTP category 5, 5e or above cable (maximum 100 m) EIA/TIA-568 100_STP (maximum 100 m) 1000Base-T: UTP category 5, 5e cable or above cable (maximum 100 m) EIA/TIA-568 100_STP (maximum 100 m) |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Forwarding Mode | Store and Forward |
| Switch Capacity | 16 Gbps |
| MAC Address Table | 4K, Auto-learning, Auto-aging |
| Flow Control | Yes |
| Backpressure | Yes |
| Fan Quantity | 1 |
| Max Power Consumption | 9.89 W (220 V/50 Hz. no PD connected) 144.36 W (110 V/60 Hz. with 126 W PD connected) |
| Max Heat Dissipation | 33.74 BTU/h (no PD connected) 492.56 BTU/h (with 126 W PD connected) |
| LED | Power, 1000 Mbps, Link/Act, PoE Status, PoE MAX |
| Dimensions | 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm) |
| Certifecation | CE, FCC |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F ) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Jumbo Frame | 16 KB |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
