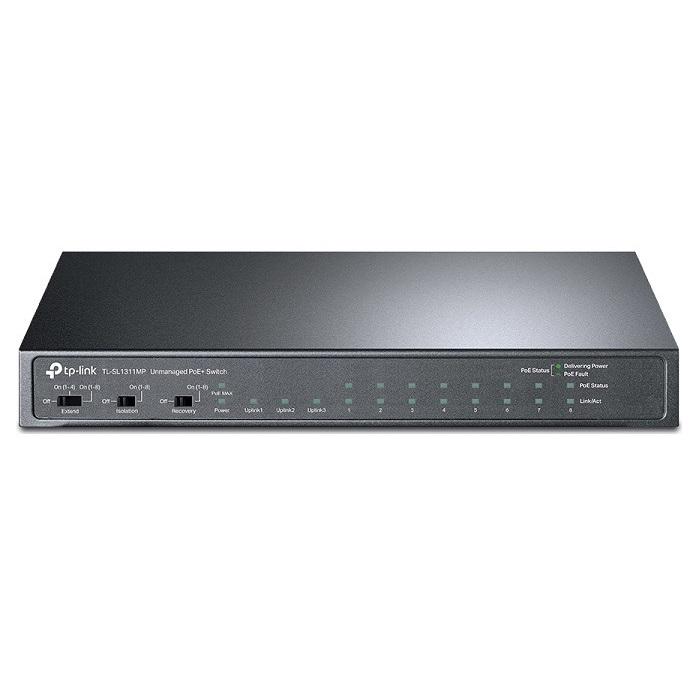

8-Port PoE+ 10/100Mbps + 3-Port Gigabit Desktop Switch TP-LINK TL-SL1311MP
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30W for each PoE port
- Supports PoE Power up to 124W for 8 PoE ports
- Up to 250m data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Interface | 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 5.6544 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–8 Power Supply: 124 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 7.6 Gbps |
| Dimensions (W x D x H) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max Power Consumption | 5.95 W (220/50 Hz. no PD connected) 140.92 W (220/50 Hz. with 124 W PD connected) |
| Max Heat Dissipation | 20.29 BTU/h (no PD connected) 480.54 BTU/h (220/50 Hz. with 124 W PD connected) |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) Isolation Mode Button (Ports 1–8) PoE Auto Recovery Button (Ports 1–8) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 36 tháng.
