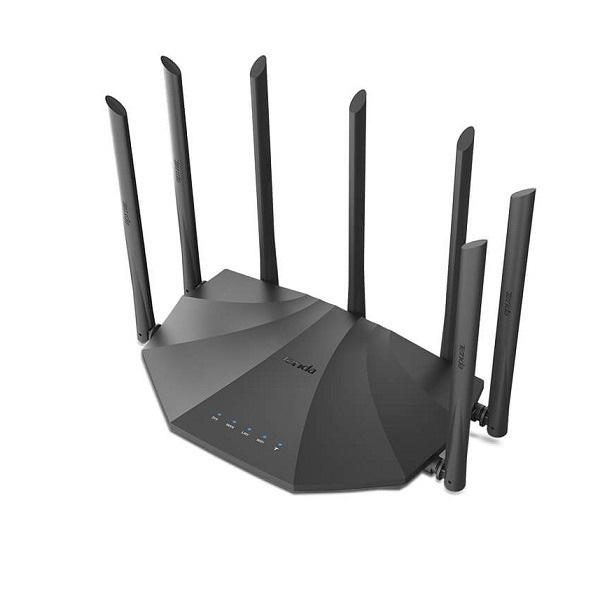

AC2100 Dual Band Gigabit WiFi Router TENDA AC23
- Router Wifi AC23 chuẩn AC2100, cung cấp hiệu suất tốt nhất ở cả hai tần số 2.4GHz và 5GHz.
- Băng tần 5GHz tốc độ lên đến 1733Mbps, băng tầng 2.4GHz lên đến 300 Mbps.
- Hoạt động 2 băng tần đồng thời cho tốc độ kết nối lên đến 2100 Mbps.
- Interface: 1x10/100/1000Mbps WAN port và 3x10/100/1000Mbps LAN ports.
- Antenna: 7 x 6dBi external antennas.
- Hỗ trợ công nghệ Beamforming, và bộ khuếch đại công suất cao và Ăng-ten ngoài, độ phủ sóng lên đến 500㎡.
Đặc tính kỹ thuật
| Model | AC23 |
| EIRP Power (Max.) | 2.400-2.4835GHz:19.86dBm (EIRP) 5.150-5.250GHz:22.96dBm (EIRP) |
| Standard&Protocol | IEEE802.3, IEEE802.3u,IEEE802.3ab |
| Interface | 1x10/100/1000Mbps WAN port 3x10/100/1000Mbps LAN ports |
| Antenna | 7 x 6dBi external antennas |
| Button | 1 x WPS/Reset button |
| Power | Input: AC 100-240V~50/60Hz 0.6A Output: DC 12V1.5A |
| Dimension | 238.9 x 144.3 x 40.3 mm |
| LED indicator | Sys x 1,WAN x 1, LAN x 1,WiFi/WPS x 1 |
| Wireless Standards | IEEE 802.11ac wave2/a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
| Data Rate | 5GHz: Up to 1733Mbps 2.4GHz: Up to 300Mbps |
| Frequency | Simultaneous dual band 2.4 & 5GHz |
| Transmit Power | CE: <20dBm(2.4G) <23dBm(5G) |
| Basic Features | SSID Broadcast: Enable/Disable Transmission Power: high, medium, low Beamforming MU-MIMO |
| Wireless Security | WPA-PSK/WPA2-PSK, WPA/WPA2 Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) fast encryption |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
| Operating Mode | Wireless Router Mode Universal Repeater Mode WISP Mode |
| DHCP Server | DHCP Server DHCP Client List DHCP Reservation |
| Virtual Server | Port Forwarding DMZ Host UPnP |
| Security | Client Filter Parental Control(support black list and white list) Remote Web Management |
| Firewall | Forbid UDP flood attack Forbid TCP flood attack Forbid flood attack Forbid WAN PING from internet |
| DDNS | Support DynDNS, Oray.com, 88ip |
| VPN | IPsec pass through PPTP pass through L2TP pass through PPTP server PPTP client L2TP client |
| Special Features | Smart Traffic Prioritisation PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off Tenda Cloud Tenda App |
| Other | Bandwidth Control IPTV MAC Clone Static Routing System Log Backup & Restore configurations Firmware upgrade online Firmware upgradeable via browser Supports IPv6 |
| Temperature | Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~ 70℃. |
| Humidity | Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing |
| Default Settings | Default Access: tendawifi.com |
| Certification | CE/FCC/RoHS |
- Bảo hành: 36 tháng.
