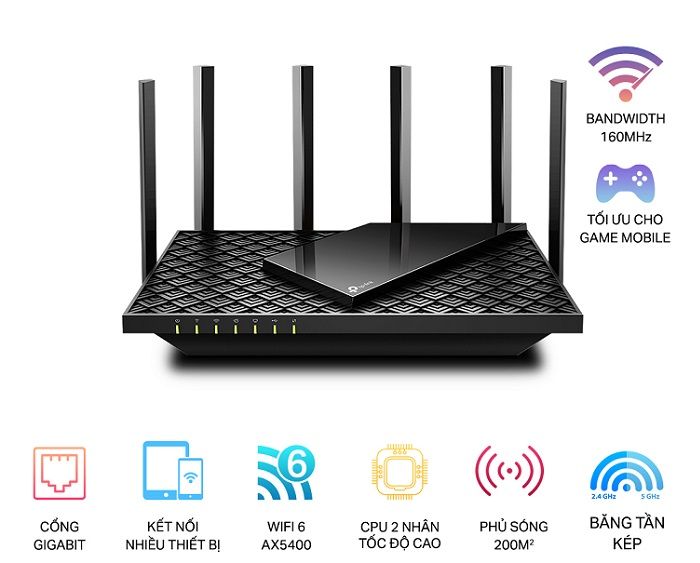

AX5400 Dual-Band Gigabit Wi-Fi 6 Router TP-LINK Archer AX72
- WiFi Gigabit cho phát trực tuyến 8K - WiFi 5400Mbps cho duyệt web, phát trực tuyến và tải về nhanh hơn cùng một lúc.
- Hỗ trợ tính năng Wi-Fi 6. Trang bị với 4T4R và HT160 trên băng tần 5GHz để bật kết nối siêu nhanh 4.8Gbps.
- Kết nối lên đến 100 thiết bị. Hỗ trợ MU-MIMO và OFDMA để giảm tắc nghẽn và tăng gấp 4 lần thông lượng trung bình.
- Hỗ trợ 6 ăng-ten và Beamforming đảm bảo phạm vi phủ sóng rộng.
- Thiết kế tản nhiệt tốt, bề mặt lỗ thông hơi được cải thiện giải phóng toàn bộ nhiệt của máy.
- 1 cổng USB 3.0 port cho phép chia sẻ media dễ dàng và tạo cloud riêng.
- Cài đặt router dễ dàng trong vài phút qua ứng dụng Tether.
Features
Gigabit WiFi for 8K Streaming
- 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.
Fully Featured Wi-Fi 6
– Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connection.
Connect 100+ Devices
– Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
Extensive Coverage
– 6 x antennas and Beamforming ensure broad coverage.
HomeShield
– TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.
More Vents, Less Heat
– Improved vents area unleash the full power of the whole machine.
USB Sharing
– 1 x USB 3.0 port enables easy media sharing and private cloud building.
Easy Setup
– Set up the router in minutes with Tether app.
Đặc tính kỹ thuật
| Model | AX72 |
| WIRELESS | |
| Standards | Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5 GHz | |
| IEEE 802.11ax/n/b/g 2.4 GHz | |
| WiFi Speeds | AX5400 |
| 5 GHz: 4804 Mbps (802.11ax, HE160) | |
| 2.4 GHz: 574 Mbps (802.11ax) | |
| WiFi Range | 3 Bedroom Houses |
| 6× Fixed High-Performance Antennas | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| Beamforming | |
| Concentrates wireless signal strength towards clients to expand WiFi range | |
| High-Power FEM | |
| Improves transmission power to strengthen signal coverage | |
| 4T4R | |
| Multiple streams in the same band strengthen the fault tolerance in transmission | |
| WiFi Capacity | High |
| Dual-Band | |
| Allocate devices to different bands for optimal performance | |
| 4×4 MU-MIMO | |
| Simultaneously communicates with multiple MU-MIMO clients | |
| OFDMA | |
| Simultaneously communicates with multiple Wi-Fi 6 clients | |
| Airtime Fairness | |
| Improves network efficiency by limiting excessive occupation | |
| DFS | |
| Access an extra band to reduce congestion | |
| 6 Streams | |
| Connect your devices to more bandwidth | |
| Working Modes | Router Mode |
| Access Point Mode | |
| HARDWARE | |
| Processor | 1 GHz Dual-Core CPU |
| Ethernet Ports | 1× Gigabit WAN Port |
| 4× Gigabit LAN Ports | |
| USB Support | 1× USB 3.0 Port |
| Supported Partition Formats: | |
| NTFS, exFAT, HFS+, FAT32 | |
| Supported Functions: | |
| Apple Time Machine | |
| FTP Server | |
| Media Server | |
| Samba Server | |
| Buttons | Wi-Fi On/Off Button |
| Power On/Off Button | |
| LED On/Off Button | |
| WPS Button | |
| Reset Button | |
| Power | 12 V ⎓ 2.5 A |
| SECURITY | |
| WiFi Encryption | WPA |
| WPA2 | |
| WPA3 | |
| WPA/WPA2-Enterprise (802.1x) | |
| Network Security | SPI Firewall |
| Access Control | |
| IP & MAC Binding | |
| Application Layer Gateway | |
| HomeShield Security | |
| Real-Time IoT Protection | |
| Malicious Site Blocker | |
| Intrusion Prevention System | |
| DDoS Attack Prevention | |
| Home Network Scanner | |
| Guest Network | 1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network | |
| VPN Server | OpenVPN |
| PPTP | |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Service Kits | HomeShield |
| OneMesh™ | OneMesh™ Supported |
| Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. | |
| Parental Controls | HomeShield Parental Controls |
| Custom Profiles | |
| Professional Content Filter Library | |
| Family Time | |
| Bedtime | |
| Off Time | |
| Time Rewards | |
| Family Online Time Ranking | |
| Pause the Internet | |
| Weekly and Monthly Reports | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade |
| TP-Link ID | |
| DDNS | |
| NAT Forwarding | Port Forwarding |
| Port Triggering | |
| DMZ | |
| UPnP | |
| Virtual Server | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| Bridge | |
| Tag VLAN | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | TP-Link |
| NO-IP | |
| DynDNS | |
| Management | Tether App |
| PHYSICAL | |
| Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in |
| (272.5 × 147.2 × 49.2 mm) | |
| Package Contents | Wi-Fi Router Archer AX72 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Cable or DSL Modem (if needed) | |
| Subscription with an internet service provider (for internet access) | |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| TEST DATA | |
| WiFi Transmission Power | CE: |
| <20dBm{2.4GHz} | |
| <23dBm{5.15GHz~5.35GHz} | |
| <30dBm{5.47GHz~5.725GHz} | |
| FCC: | |
| <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } | |
| <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } | |
| WiFi Reception Sensitivity | 2.4GHz: |
| 11ac VHT20 MCS0:-94.5dBm | |
| 11ac VHT20 MCS8:-72.5dBm | |
| 11ac VHT40 MCS0:-92.5dBm | |
| 11ac VHT40 MCS9:-69.5dBm | |
| 11ax HE20 MCS0:-95dBm | |
| 11ax HE20 MCS11:-64.5dBm | |
| 11ax HE40 MCS0:-92.5dBm | |
| 11ax HE40 MCS11:-62dBm | |
| 5GHz: | |
| 11ac VHT20 MCS0:-97dBm | |
| 11ac VHT20 MCS8:-74dBm | |
| 11ac VHT40 MCS0:-95dBm | |
| 11ac VHT40 MCS9:-70dBm | |
| 11ac VHT80 MCS0:-91.5dBm | |
| 11ac VHT80 MCS9:-66dBm | |
| 11ac VHT160 MCS0:-86dBm | |
| 11ac VHT160 MCS9:-61dBm | |
| 11ax HE20 MCS0:-95dBm | |
| 11ax HE20 MCS11:-64dBm | |
| 11ax HE40 MCS0:-91.5dBm | |
| 11ax HE40 MCS11:-62dBm | |
| 11ax HE80 MCS0:-88dBm | |
| 11ax HE80 MCS11:-58dBm | |
| 11ax HE160 MCS0:-85.5dBm | |
| 11ax HE160 MCS11:-55dBm | |
- Bảo hành: 24 tháng.
