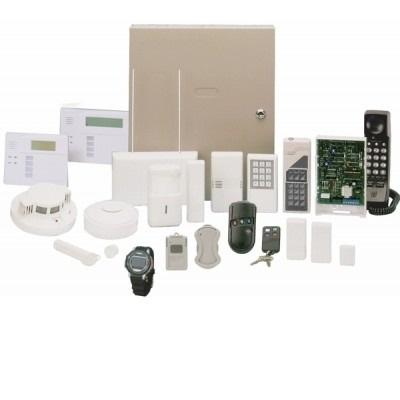

Trung tâm báo động Honeywell VISTA-20P

IP alarm reporting and uploading/ downloading capability for Internet and Intranet use via iGSMV4G, 7845i-ENT, GSMV4G or GSMX4G

Supports four graphic touchscreen keypads

Wireless keys can be programmed without using zones

Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)

– 40 hardwire expansion zones

– 40 wireless expansion zones

Two low current on-board trigger outputs

100 Event Log viewable at system keypads with time/date stamp

48 system user codes assignable to either partition

Expandable to 48 total zones when used with hardwired and/or wireless expansion modules

Two independent partitions plus a common partition

– Global Arming from any system keypad

– Go to function to view or operate one partition from the other

– Separate partition account numbers

16 output devices

– Relays (Model 4204 Relay Modules, or 4229 Expansion Module)

Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes

Supports four-wire and up to 16 two-wire smokes

– Works with Sentrol CleanMe™ maintenance signal

Multiple actions on output devices depending on system state

– Turns lights off when system arms

– Turns the same light on when system disarms

– Flashes same lights when system is in alarm

Built-in phone line cut monitor with programmable delay and annunciation options

– Display on system keypads

– Trigger local sounders

– Trigger system bell

Security Dealer Features

Automatic System Load Shed

– During extended AC power fail, the system battery will be disconnected to prevent irreversible battery failure. Reduces service calls to replace batteries.

Dynamic Signaling

– Reduces redundant reporting to the central station when multiple reporting methods are used; i.e. digital dialer and AlarmNet radio

Valuable End-User Features

Viewable on system keypads:

– Exit countdown

– Time and date display*

– Event log*

Auto keypad backlighting on entry

Keyswitch arming

Programmable macro buttons and single-button arming

Supports a variety of wireless remote controls for single-button operation

User Scheduling

– Latchkey reports to pagers

– Auto arm/disarm

– “User access” time windows

VIP Module allows system control from any touchtone phone

Chime by zone

*Requires custom alpha keypad
