Bộ chuyển đổi quang điện 1 cổng Gigabit Ethernet sang quang (1 Sợi quang, Single mode, SC, 80KM) 3Onedata
Model : 3012-SS-SC-80KM

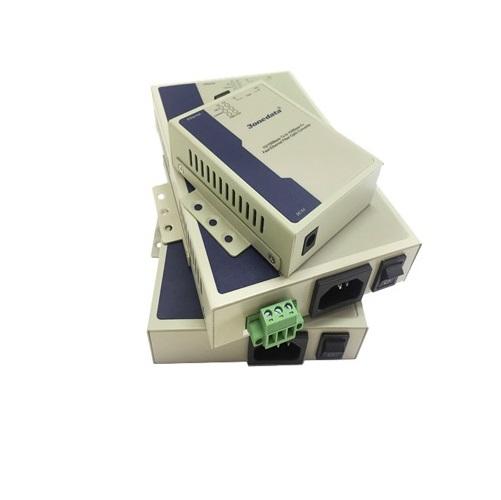

MODEL3012 series are 2-port Gigabit media converter. It can convert Ethernet electrical signal into Ethernet optical signal to extend the transmission distance. It also has good isolation protection and data confidentiality. This series include three types of products with different mains input methods and provide Gigabit copper port, Gigabit fiber port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.
This series of products conform to CE, FCC certification standards. Hardware adopts fanless, low power consumption, wide temperature and voltage design, which can suit for the scene environment with harsh requirements. It can be widely used in various fields.
| Standard
&Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X
|
| Copper Port |
10/100/1000Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning
|
| Fiber Port |
Standard: 1000Base-FX Connection mode: SC/ST/FC optional Transmission distance: Multimode: 500m/2km Single mode: 10/20/40/60/80km Fiber cable: Multimode: 50/125μm or 62.5/125μm Single mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm Transmission wavelength: Multimode: 850nm/1310nm Single mode: 1310nm/1550nm
|
| LED Indicator |
Port indicator, power supply indicator
|
| Power
Requirement |
Support three kinds of mains input methods External 5VDC, DC round head Built-in 220VAC, AC socket with switch Built-in 48VDC, 3-pin 5.08mm pitch terminal blocks
|
|
Power Consumption
| 4W |
| Environmental
Limit |
Operating temperature: -10~60℃ Storage temperature: -20~70℃ Relative humidity: 5%～95%（no condensation）
|
| Physical Characteristic |
Housing: metal Installation: wall or DIN-Rail mounting Dimension (W x H x D): 70.6mm×26mm×94mm (external power supply) 115mm×30mm×173.2mm (built-in power supply)
|
| Certification |
CE, FCC, RoHS
|
| Warranty |
3 years |
