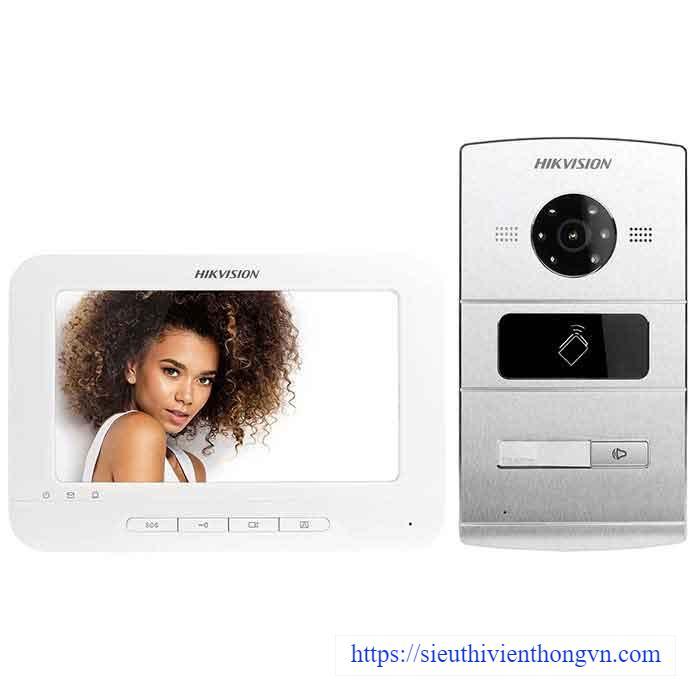

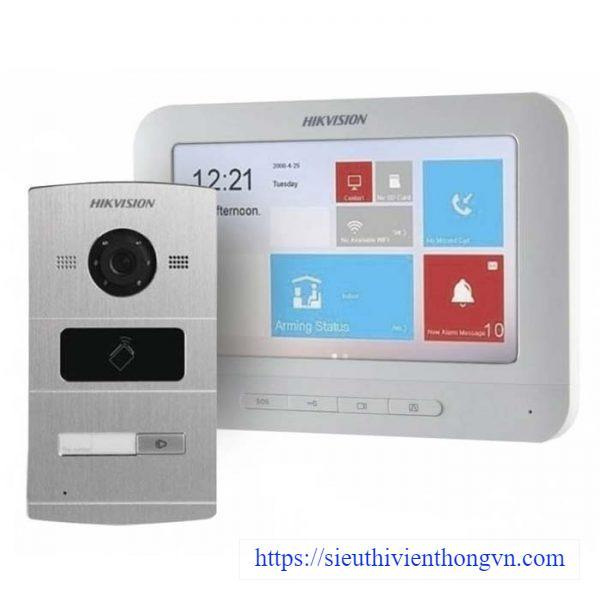

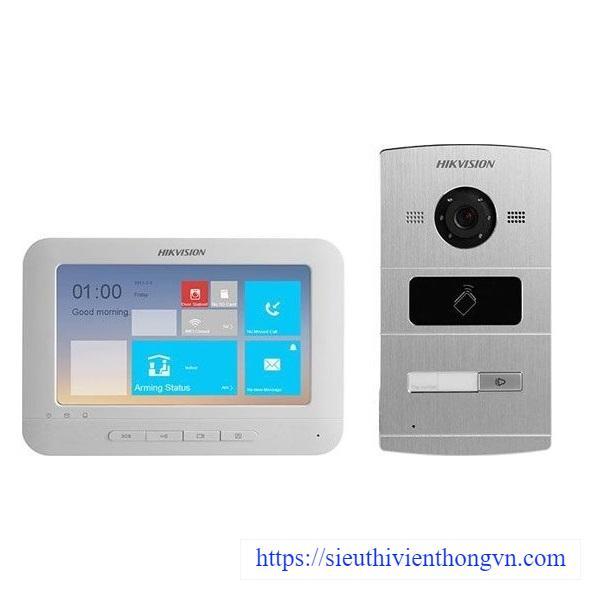

Bộ điện thoại gọi cửa có thu hình IP HIKVISION DS-KIS601
Door Station
- Video intercom function.
- Access control function.
- Issues cards via door station, up to Max.256 cards.
- Card readers supported.
- Self-adaptive IR supplement.
- HD video surveilance.
- Noise suppression and echo cancellation.
- H.264 video video compress.
- Low illumination.
- Remote answering the call and unlocking via the app.
Indoor Station
- Hands-free audiovisual communication with the door station.
- 2-ch zone alarm supported.
- Supports monitoring door stations and external cameras.
- Remote unlocking via the app.
- 7-inch colorful FTF LCD with resolution 800x480.
- Capacitive touch screen and physical buttons.
- Noise suppression and echo cancellation.
- H.264 video compression.
Đặc tính kỹ thuật
| Indoor Station | |
| Model | DS-KH6310-WL |
| System parameters | |
| Processor | High-Performance Embedded SOC Processor |
| Operation system | Embedded Linux Operation System |
| Display parameters | |
| Display screen | 7-Inch Colorful TFT LCD |
| Display resolution | 800 × 480 |
| Operation method | Capacitive Touch Screen, Physical Button |
| Operation interface | Flattened UI Operation Interface |
| Audio parameters | |
| Audio parameters | Built-in Omnidirectional Microphone |
| Audio output | Built-in Loudspeaker |
| Audio compression standard | G.711U |
| Audio compression rate | 64Kbps |
| Audio quality | Noise Suppression and Echo Cancellation |
| Network parameters | |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network protocol | TCP/IP, RTSP |
| Alarm parameters | |
| Alarm input | 2-ch Alarm Input Sensor |
| Device interfaces | |
| Network interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| RS-485 | 1 RS-485 Half-Duplex Port |
| I/O output | 1 |
| General | |
| Memory | 256 M |
| Power supply | 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) 12 VDC |
| Power consumption | ≤10 W |
| Working temperature | 10° C to + 55° C (14° F to 131° F) |
| Working humidity | 10% to 90% |
| Dimensions(L × W × H) | 217 mm × 142 mm × 26 mm (8.5' × 5.6' × 1.0') |
| Door Station | |
| Model | DS-KV8102-IM |
| System parameters | |
| Processor | High-Performance Embedded SOC Processor |
| Operation system | Embedded Linux Operation System |
| Video parameters | |
| Camera | CMOS Low IIIumination 1.3 MP HD Colorful Camera |
| Video compression standard | H.264 |
| Resolution | 1280 × 720 |
| Video frame rate | 25 fps |
| Audio parameters | |
| Audio input | Built-in Omnidirecttional Microphone |
| Audio output | Built-in Loudspeaker |
| Audio compression standard | G.711 U |
| Audio compression rate | 64 Kbps |
| Audio quality | Noise Suppression and Echo Cancellation |
| Access control parameters | |
| Internal card reader | Built-in IC Card Reader |
| Exit button | Exit Button for Opening the Door |
| Door magnetic detection | Detects Door Magnetic Status |
| Light supplement | |
| Light supplement mode | IR Supplement |
| Network parameters | |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network protocol | TCP/IP, RTSP |
| Alarm parameters | |
| Alarm input | Door Magnetic Alarm, Tampering Alarm |
| Device interfaces | |
| Network interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| RS-485 | 1 RS-485 Half-Duplex Port |
| I/O input | 4 |
| I/O output | 1 |
| General | |
| Indoor station access amount | 1 |
| Material | Aluminum Alloy |
| Power supply | 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) 12 VDC |
| Power consumption | ≤12 W |
| Working temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% |
| IP protection level | IP 65 |
| Dimensions (L x W x H) | 182 mm × 100 mm × 33 mm (7.17' × 3.94' × 1.30') |
- Bảo hành: 24 tháng.
