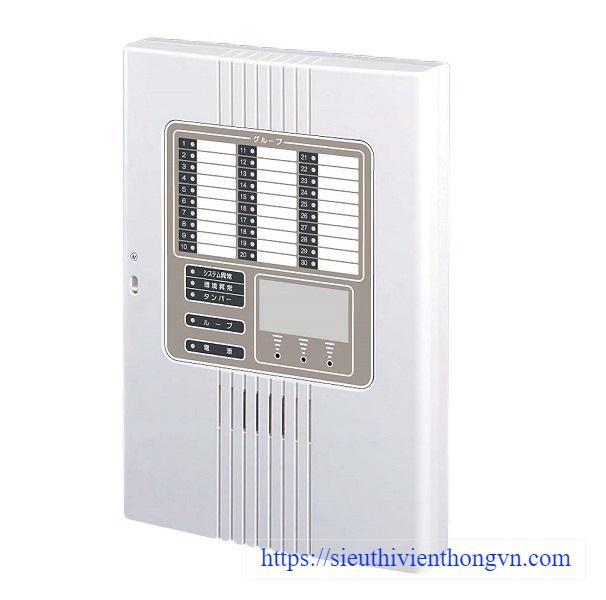

Bộ điều khiển báo động địa chỉ BUSNET TAKEX BUS-C800
- Kết nối tối đa 255 thiết bị BUSNET.
- 30 cổng ra theo nhóm (tập hợp một hay nhiều địa chỉ).
- 72 cổng ra tương ứng với mỗi địa chỉ (cảm biến).
- Chỉ sử dụng 1 đường tín hiệu gồm 2 sợi cho toàn bộ hệ thống.
- Có thể sử dụng dây thông thường cho cả tín hiệu lẫn cấp nguồn cho các cảm biến.
- Khoảng cách truyền dẫn lớn (giữa tủ trung tâm và cảm biến): 1.000m
- Tổng khoảng cách truyền dẫn giữa trung tâm và các cảm biến: 4.000m (đường kính dây = 0.9mm).
- Đường tín hiệu có thể xuất ra theo nhiều nhánh để tăng tầm bao phủ của hệ thống.
- Sử dụng bộ khuếch đại (BUS-RT1/ BUS-RT1A) để tăng gấp đôi khoảng cách.
- Dễ dàng cài đặt: thêm/bớt thiết bị.
- Các cảm biến/đầu báo thông thường có thể nối với hệ thống qua bộ mở rộng (BUS-U1).
- Tín hiệu rơ le (NC/NO) có thể được xuất ra tại bất cứ điểm nào có kết nối với đường tín hiệu.
Đặc tính kỹ thuật
| Power-supply voltage | 1 to 30 terminals: 10.5 to 28 VDC (with polarity) 31 to 255 terminals: 20 to 28 VDC (with polarity) |
| Current consumption | 2A max |
| Transmission method | Bus net method (time division multiplex transmission method) / (with polarity) |
| Transmission speed | About 8-16msec / 1 unit |
| Transmission signal | This unit → Terminal: Control of the indicator lamp in the inspection mode Terminal → This unit: Normal, alarm, tamper, warning, release, environmental error, voltage drop, equipment error Settable address: 1 to 255 |
| Remote switch input | 1 input: 3-way remote switch only |
| Warning/ release output | Contact method: No-voltage semiconductor contact contact operation: Fast Set (when some alert) / ol sets (total alert time) and selectable from the combination of a contact (guard the closed) / b contact (alert normally closed) contact rating : AC / DC30V ･ 0.25A |
| Loop output | Contact method: Non-voltage semiconductor contact (b contact (open when abnormal) / a contact (closed when abnormal) setting) Contact action: Terminal, alarm output to the unit, output when an abnormality occurs Contact rating: AC / DC30V / 0.25A |
| System error output | Contact method: Non-voltage semiconductor contact (b contact (open when abnormal) / a contact (closed when abnormal) setting) Contact operation: When terminal communication error (disconnection), voltage drop, device error, etc. Output contact rating: AC / DC30V ･ 0.25A |
| Environmental error output | Contact method: Non-voltage semiconductor contact (b contact (open when abnormal) / a contact (closed when abnormal) setting) Contact operation: Output when environmental abnormality occurs on terminal Contact rating: AC / DC30V / 0.25A |
| Tamper-output | Contact method: Non-voltage semiconductor contact (b contact (open when abnormal) / a contact (closed when abnormal) setting) Contact operation: Output when tampering occurs on the unit and terminal Contact rating: AC / DC30V / 0.25A |
| Contact output 1 to 30 | Interactions: 30 points Contact method: No-voltage semiconductor contact contact operation: (Operation during alarm) Group alarm (operates during alarm) individual address alarm, selectable in bulk from any group alert / release (operation during alert) contacts Rating: AC / DC30V ・ 0.25A |
| External communication terminal / connector | Shape: Dedicated connector for terminal block and attached external communication cable (exclusive use of either) Signal level: RS-232C compatible Signal line: SD, RD, SG, + 5V (+ 5V is the dedicated connector only) Synchronization method: Start-stop synchronization Communication speed: 38400, 19200, 9600, 4800 [bps] Data bit: 8 bits Parity: None Stop bit: 1 bit Flow control: None control Procedure: Polling from the host to this machine |
| Alarm indicator by group (red | Alarm occurrence status of group “1 to 30” is displayed when normal (energized): Off Alarm generated: Lighted memory: Flashing |
| System error indicator (red) | Terminal of the communication error (disconnection), voltage drop, equipment abnormality: Lit when Memory: Blinking |
| Environmental anomaly indicator (red) | Time environment abnormality: Lit when Memory: Blinking |
| Tamper indicator (red) | When tampering is abnormal: Lit Memory: Flashing |
| Loop indicator (green) | Normal (while energized): Lit Alarm, when an error occurs: Off |
| Power indicator (green) | At the normal time (in power): Lights brownout conditions: Flashing |
| Attached function | Mode switching function, LCD display function, warning / release switching function, alarm display function, system error display function, environmental error display function, tamper display function, loop check function, low power supply voltage display function, external communication function |
| Wiring connection | Power supply, bus line, various input / output: M4 self-up terminal |
| Usable ambient temperature | -15 ° C to + 55 ° C (no condensation) |
| Installation location | Indoor (wall mounted) |
| mass | 1,600g |
| appearance | Resin (white) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
