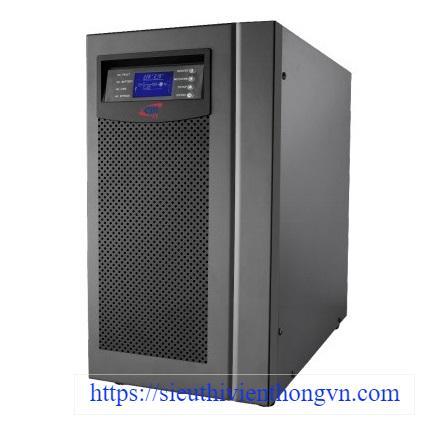

Bộ nguồn lưu điện Online 3 pha vào 1 pha ra 10KVA UPS EPI MST-Pro3310
- High Reliability: MST-Pro Series offers high quality power supply with the greatest degree of availability and reliability.
- Extended back up time: Battery expansion is possible to increase the back-up time of the UPS. For longer back-up time, it is available MST-Pro “L” version without internal battery but with powerful battery charger.
Main Features
- MST-Pro has faster response, more reliable protection by adopting hardware circuit current-limiting on rectifier and inverter sections;
- MST-Pro greatly reduces the voltage stress of input PFC switching components, increase the overall working efficiency by adopting PFC soft switching circuit technology;
- Electric stress on switching on or off UPS is reduced by 50%, inverter working efficiency increases efficiently, support all kinds of load;
- Overall efficiency is increased greatly, less power consumption on small load, effective efficiency reaches over 91% on full load;
- With mobile network monitoring function developed, end user can monitor and supervise UPS functioning and running with mobile device anytime anywhere;
- Stable output voltage wave form, more accurate output range: 220V+/-1%.
Đặc tính kỹ thuật
| Module Model | MST-Pro3310 |
| Capacity | 10KVA/8KW |
| Bước sóng(batt.mode) | Pure Sinewave |
| Màn hình LCD | Load level, Battery level, AC mode, Battery mode, Bypass mode, and fault indicator |
| Cổng chống sét | RJ45 I/O port available for network or FAX/Telephone line/Modem |
| Đầu vào | |
| Điện áp đầu vào | 200/208/220/230/240VAC |
| Dải điện áp vào | Min.tranfer (with 50% load, 110Vac±3%; with 100% load, 176 Vac±3%) Min.reply (minimum transfer voltage ±3%) Max.Tranfer (300Vax±3%) Max reply (maximum transfer voltage -10V) |
| Phase | Three phase with mid-line grounding mode |
| Hệ số công suất | >=0.99@Norminal Voltage(100% load) |
| Đầu ra | |
| Dải điện áp | 208/220/230/240 VAC |
| Điều chỉnh điện áp AC | ±1% |
| Dải tần số đầu ra | 46-56hz ( 50Hz system)/56-64hz ( 60Hz system) 50Hz ± 0.1Hz hoặc 60Hz ± 0.1Hz (Battery mode) |
| Current Crest Ratio | 3:1 ( max value) |
| Dạng sóng | Dạng Sóng hình Sin chuẩn: Pure Sin Wave |
| Méo hài | ≦3 % THD (Linear Load), ≦6 % THD (Non-linear Load) |
| Quá tải | |
| AC Battery | 100%- 110%: 30mins 110%-130% 5 min; >130: 1s |
| Inverter Bypass | 100%- 110%: 3 mins 110%-130% 30s; >130: 1s |
| Thời gian chuyển mạch | |
| AC to DC | 0 |
| Inverter to Bypass | 4ms(Typical) |
| ECO to Battery mode | 8ms(Typical),10ms(Max) |
| Efficiency | |
| AC mode | ≧91% |
| Battery Mode | ≧91% |
| Ắcquy | |
| Loại Ắcquy | ắcquy axit chì kín, nằm trong UPS, bảo trì theo UPS |
| Loại Ắcquy | 12V9Ah*16pcs |
| Thời gian lưu điện | Runtime at Half Load (min): 12.4 min Runtime at Full Load (min): 5 min |
| Thời gian sạc | 90% công suất sau 9 tiếng |
| Charging Voltage | 218.4VDC ±1% |
| Charging Current | Default: 1A±10%, max volue 2A |
| Chế độ hoạt động lâu dài | |
| Model | Depends on the usage |
| Quantity | 16-20( can be adjusted) |
| Charging Current | Preinstalled: 4A; ±10% maximum value 6A±10% |
| Charging Voltage | N x 13.65 Vdc 1% ( N is the battery quantity) |
| Cảnh báo | |
| Battery Mode | Sounding every 5 seconds |
| Low Battery | Sounding every 2 seconds |
| Overload | Sounding every second |
| Overload | Continuously sounding |
| Giao diện | |
| Intelligent RS232/USB serial port | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC |
| SNMP (optional) | Power management from SNMP manager and web browser |
| Kích thước | |
| DxWxH (mm) | 500x240x616(mm) |
| Net Weight(kgs) | 64 |
| Môi trường | |
| Độ ẩm | |
| Độ cao | <1000m |
| Nhiệt độ | 0- 40°C ( Battery life will be shorten in an environment higher than 25°C) |
| Độ ồn | Less than 58dBA@1Meter with fan speed control |
| Tiêu chuẩn | |
| EMC/Safety | (EMC 1-1.5K: EN62040-2 C1, 2K-3K EN62040-2 C2) for CE models |
- Bảo hành: 24 tháng UPS và 12 tháng Acquy.
