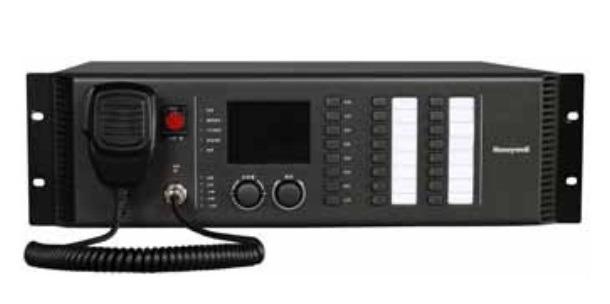

Bộ xử lý trung tâm 8 vùng Honeywell HCU-2000
- Zone (Vùng loa): 8
- Channel (Kênh âm thanh): 2
- Contact input: 10, Contact output: 8
- Tích hợp sẵn ampli 500W Class-D
- Có màn hình LCD phía trước
- Hệ thống có khả năng mở rộng đến 128 vùng loa
- Có chế độ ampli dự phòng
- Có khả năng phát hiện và chỉ báo lỗi
- Nguồn: 220-240VAC, 50/60Hz
- Ethernet port: 10M/100M
- Nhiệt độ hoạt động: -10°C~+50°C
- Kích thước: 482 ×133.5 ×420 mm (W x H x D)
Features
- Complies with international standards
- A highly compact and integrated system
- Simple and easy to use with an innovative design
- Provides easy access to status updates, amplifer backup, logging and direct paging capabilities
- Plug-and-play with default settings
- Intuitive set-up with step-by-step guided interaction between buttons and screens
- Can achieve all calls by confgurable keys
- Auto configures when components are physically connected
Specifications
| Model | HCU-2000 |
| Main power supply voltage | AC 220-240V, 50/60Hz |
| Backup power supply voltage | AC 220-240V, 50/60Hz |
| Main power supply fuse | T10AH 250V |
| Rated power | 750W |
| MICROPHONE INPUT | |
| Input sensitivity | -65±3dBV |
| Input impedance | 250Ω |
| Frequency response | 90 Hz -13KHz |
| SNR | >50dB (with A-Weight) |
| AUXILIARY INPUT | |
| Channel | 2 |
| Input sensitivity | 1V (0dBV) |
| Input impedance | 10 KΩ |
| Frequency response | 85Hz-18KHz |
| SNR | >77dB (with A-Weight) |
| MIC/LINE INPUT | |
| Input sensitivity | -50dBV/0dBV, selectable |
| Input impedance | 10 KΩ |
| Frequency respons | 85Hz-18KHz |
| SNR | >77dB (with A-Weight) |
| Phantom power | DC 24V, switchable |
| CALL STATION INTERFACE | |
| Input signa | 2 |
| Input impedance | 20 KΩ |
| Output signal | 2V |
| Output impedance | 20 KΩ |
| Frequency response | 85Hz-18KHz |
| AUDIO OUTPUT | |
| Output channel | Channel 1, channel 2 and recording output |
| Output signal | 1V (0dBV) |
| THD | <0.5% |
| AMPLIFIER CONTROL INTERFACE | |
| Channel | 3 (channel 1, channel 2 and backup amplifier) |
| Output signal | 1.4V |
| THD | <0.5% |
| Control signal | Self-test signal, amplifier fault signal and power saving control signal |
| LOUDSPEAKER CIRCUITS | |
| Output channel | 8 (with group A and group B) |
| Maximum loudspeaker load | 500W |
| CONTACT INPUT /OUTPUT | |
| Contact inputs | 10 (monitored) |
| Contact outputs | 8 (NO, NC & COM), “fault” output, “emergency” output |
| Max. working voltage for Outputs | AC 250V/DC 30V |
| Max. working current for Outputs | 2.5A |
| OTHERS | |
| DC power output | 24V/1A |
| Monitoring loudspeaker | 2W/8Ω |
| Ethernet port | 10M/100M |
| Memory capacity | 1GB |
| Dimension (W×H×D) | 482 ×133.5 ×420 mm |
| Weight | 14.3kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
