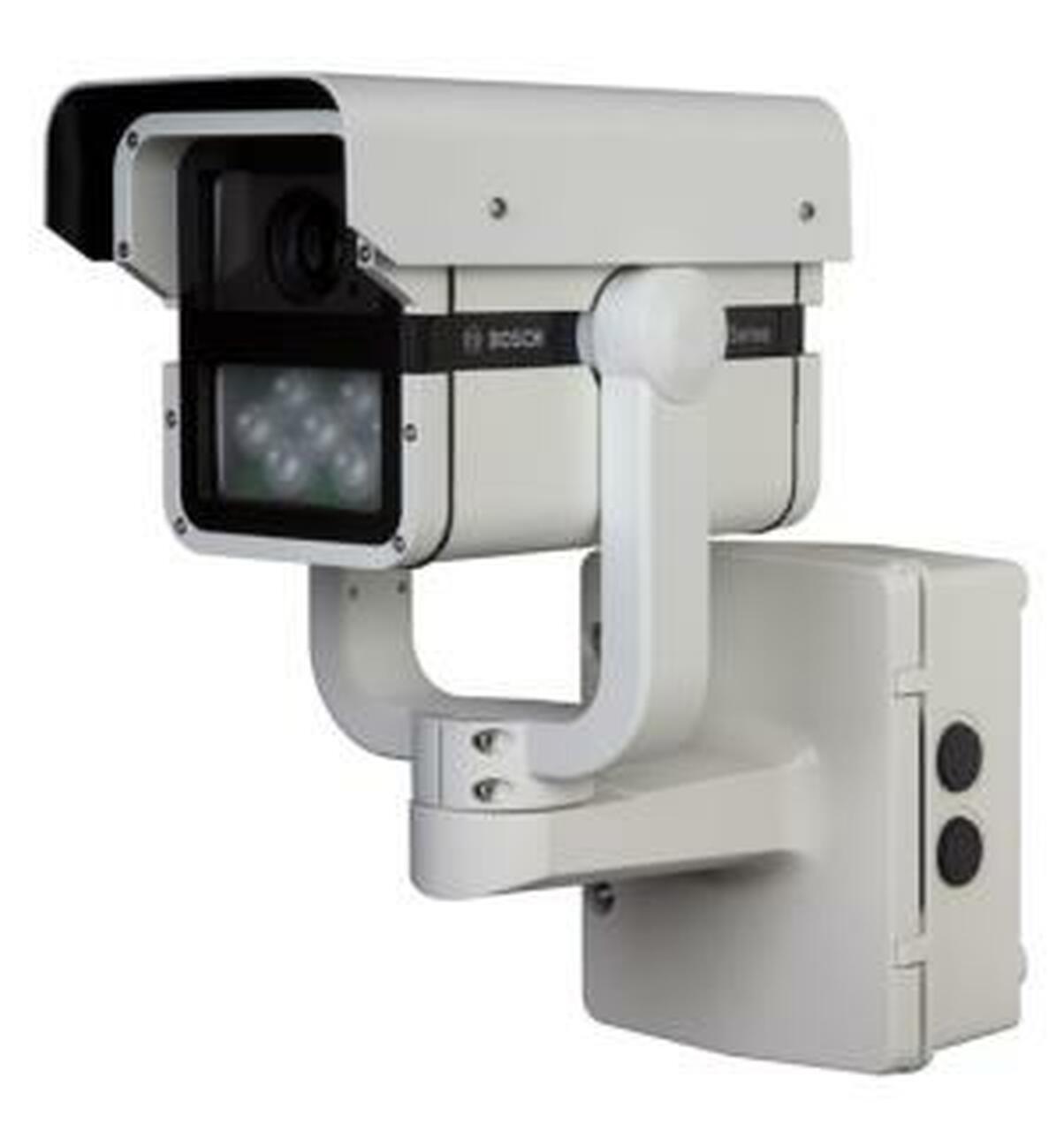

IP IR CAMERA, 2 MP / HD 1080p, TDN, 10 to 23MM AF LENS, H.264, AUDIO/MOTION, POE, 850NM, IP66/NEMA4X, VANDAL IK10, SDHC/SDXC CARD SLOT, IVA INSTALLED
- Active infrared 1080p30 HD camera specifically designed for 24-hour perimeter surveillance
- Remotely adjustable high power infrared illumination for unmatched no-light performance up to 120 m (394 ft) detection
- All-in-one integrated housing with auto zoom/focus SR lens for quick and easy installation
- All-weather, vandal-proof design for reliable long-term performance
- Embedded Intelligent Video Analysis firmware transforms camera into automated detector
Key Specifications
| Power Supply | +12 ~ 24 VDC; 24 VAC; PoE+ (52 VDC nominal) | |||
| Power Consumption | 2.25 A | 27 W (+12 VDC); 1.65 A | 28 VA (24 VAC); 490 mA | 25.5 W (POE+) |
| PoE (Power-over-Ethernet) | 802.3at (Type 2); Power level: Class 4 |
| Type | 1/2.7‑inch CMOS |
| Pixels | 1952 x 1092 (2.03MP) |
| Color | 0.4lx |
| Monochrome | 0 lx (IR) |
| Dynamic range | 76 dB WDR 92 dB WDR (with IAE) |
| Day/Night | Color, Monochrome (IR), Auto |
| Shutter | Automatic Electronic Shutter (AES) Fixed (1/25[30] to 1/150000) selectable Default shutter |
| White Balance | Indoor, Outdoor and Manual |
| Backlight compensation | On, Off, Intelligent Auto Exposure |
| Noise reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Contrast enhancement | On/off |
| Sharpness | Sharpness enhancement level selectable |
| Privacy Masking | Four independent areas, fully programmable |
| Video Motion Analysis | Intelligent Video Analysis |
| Other functions | Video watermarking, Alarm mode stamping, Image mirror, Image flip, Contrast, Saturation, Brightness, Pixel counter |
| Video compression | H.264 (MP); M- JPEG |
| Streaming | Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
