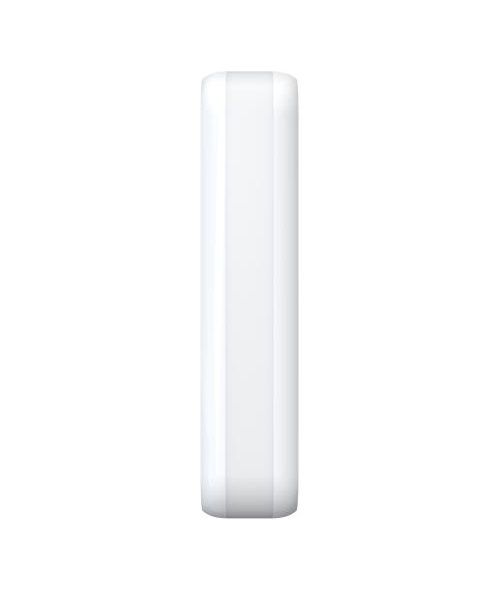

Cảm biến hồng ngoại ngoài trời không dây HIKVISION DS-PDC10DM-EG2-WB
- Cảm biến hồng ngoại dạng mành ngoài trời, không dây chống nước IP65 (nên lắp cùng chân đế DS-PDB-EX-SBKT).
- Khoảng cách kết nối đến trung tâm báo động: 1000m (trong không gian trống).
- Khoảng cách nhận diện chuyển động: 10m khi gắn tường và 5m khi gắn trần.
- Loại trừ súc vật dưới 12kg khi gắn tường.
- Có thể cấu hình từ xa qua App.
- Chiều cao lắp đặt: 2-3.5m.
- Loại pin: 2 x CR123A (kèm sẵn trong thiết bị, thay thế dễ dàng).
- Tuổi thọ Pin: Khoảng 5 năm.
Thông số kỹ thuật
| Detection Performance | |
| Detection Method | Passive Infrared, Microwave |
| Detection Range | Wall Mount: 10m |
| Ceiling Mount: 5m | |
| Detection Angle | 5° |
| Detection Zones | 32 |
| Detectable Speed | 0.3~2m/s |
| Sensitivity | Auto, Pet |
| White Light Filter | 6500lux |
| Pet Immunity | Wall Mount: 12Kg |
| Ceiling Mount: None | |
| Microwave Frequency | 24GHz(24.15~24.25GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Anti-masking | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front, Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Directional Detection | Support |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Green(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up,Remote ID,QR Code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 5 years (standby time) |
| Power Supply | Battery Powered |
| Battery Type | CR123A × 2 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 29.2mm × 134.4mm × 39.5mm |
| Weight | 120g |
| Mounting Height | 2 to 3.5m |
| Mounting Method | Wall,Ceiling |
| Application Scenario | Indoor,Outdoor |
| Bracket | L-shaped adapter included |
- Bảo hành: 24 tháng.
