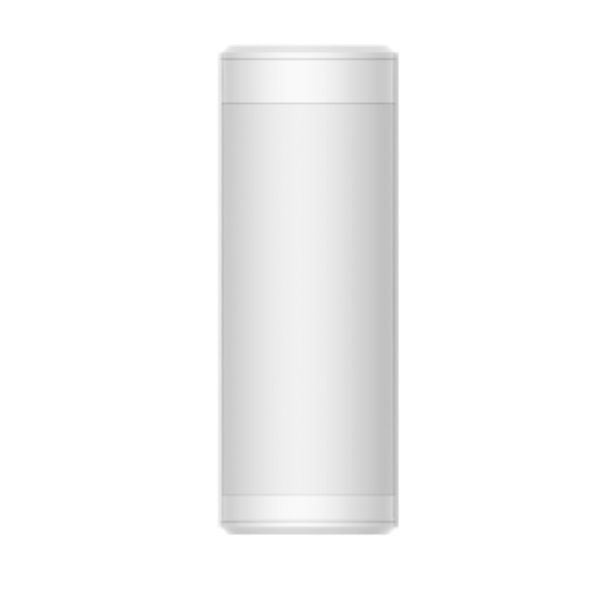

Cảm biến hồng ngoại Panoramic 180º không dây HIKVISION DS-PDQP15AM-LM-WB
- Hồng ngoại panoramic 180º ngoài trời, không dây chống nước IP65 (ốp tường).
- Khoảng cách kết nối đến trung tâm báo động: 1200m (trong không gian trống).
- Khoảng cách nhận diện chuyển động: 15m.
- Loại trừ súc vật dưới 40kg.
- Có thể cấu hình từ xa qua App.
- Loại pin: 5 x CR123A (kèm sẵn trong thiết bị, thay thế dễ dàng).
- Tuổi thọ Pin: Khoảng 5 năm.
Thông số kỹ thuật
| Detection Performance | |
| Detection Method | Passive Infrared |
| Sensor Model | SFG323-711 |
| Detection Range | 15 m |
| Detection Angle | 180° |
| Detection Zones | 40 |
| Detectable Speed | 0.3 to 2m/s |
| Sensitivity | Auto, low |
| White Light Filter | 20000lux |
| Pet Immunity | Up to 40 kg(cm height) |
| Digital Temperature Compensation | Support |
| Anti-masking | Support |
| Adaptable Coverage | Pattern mask included |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front, rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power up enrolling |
| LED Indicator | Blue(alarm), green+orange(mask) |
| Transmission | |
| Transmission Technology | Tri-X wireless |
| Transmission Method | Two-Way RF wireless |
| Transmission Frequency | 433 MHz |
| Transmission Security | AES-128 encryption |
| Transmission Range(Free Space) | 1.2 km |
| Frequency Hopping | Support |
| Enrolling Method | Power up, remote ID, QR code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures) |
| Power Supply | Battery powered |
| Battery Type | CR123A × 5 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -25°C to 60°C (-13°F to 140°F) |
| Storage Temperature | -25°C to 60°C (-13°F to 140°F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 75 mm × 202 mm × 73 mm |
| Weight | 512.5 g |
| Mounting Height | 0.8 m to 1.2 m |
| Mounting Method | Wall |
| Application Scenario | Outdoor |
- Bảo hành: 24 tháng.
