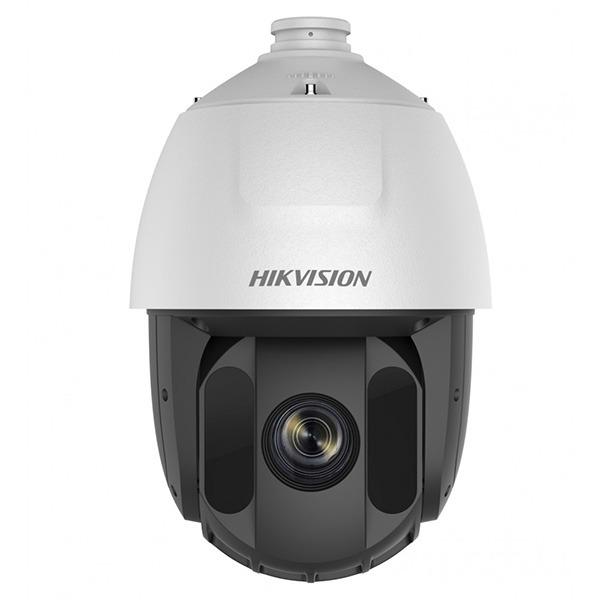

Camera HD-TVI Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2AE5225TI-A(C)
-DS-2AE5225TI-A(C) là dòng Camera Speed Dome Turbo 5-Inch.
-Camera 4 in 1 hỗ trợ kết nối TVI/AHD/CVI/CVBS.
-Cảm biến hình ảnh: 1/2.8 inch HD progressive scan CMOS.
-Độ phân giải: 2.0 Megapixel (1920 x 1080).
-Độ nhạy sáng: Ultra-low light Power By DarkFighter Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON)
-Ống kính: 4.8 mm ~ 120 mm.
-Tầm quan sát hồng ngoại: 150 mét.
-Zoom quang: 25x.
-Zoom số: 16x.
-Chức năng chống ngược sáng thực 120dB WDR.
-Chức năng quan sát Ngày và Đêm.
-Hỗ trợ 3D zoom.
-Chuyển đổi chế độ TVI/AHD/CVI/CVBS video out.
-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
-Nguồn điện cung cấp: 24VAC
-Công suất tiêu thụ: Max. 30 W.
-Kích thước: Ø 208 x 305 mm.
-Trọng lượng: 3.3 kg.
Đặc tính kỹ thuật
| Model | DS-2AE5225TI-A(C) |
| Camera | |
| Image Sensor | 1/2.8 inch progressive scan CMOS |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz: 25fps @(1920 x 1080) |
| 60Hz: 30fps @(1920 x 1080) | |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) |
| B/W: 0.001 Lux @(F1.6, AGC ON) | |
| 0 lux with IR | |
| White Balance | AUTO/ MANUAL/ HAUTO/ ATW/ INDOOR/ OUTDOOR |
| AGC | AUTO/MANUAL |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000 s |
| NTSC: 1/1 s to 1/10,000 s | |
| Day & Night | IR cut filter |
| Digital Zoom | 16x |
| Privacy Mask | 8 programmable privacy masks |
| BLC, HLC, EIS | Yes |
| Reginal Focus | Yes |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 4.8 mm to 120 mm, 25x Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Field of View | Horizontal field of view: 57.6° to 2.5° (wide to tele) |
| Vertical field of view: 34.4° to 1.4° (wide to tele) | |
| Diagonal field of view: 64.5° to 2.9° (wide to tele) | |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Approx. 3.6 s (optical, wide to tele) |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan manual speed: 0.1°to 120°/s |
| Pan preset speed: 120°/s | |
| Tilt Range | -15° to 90°(auto flip) |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Yes |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night |
| Mode/None | |
| PTZ Position Display | ON/OFF |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night |
| Mode/Zero Calibration/None | |
| Infrared | |
| IR Distance | Up to 150 m |
| IR Intensity | Automatically adjusted depending on the zoom ratio |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| Alarm | 2 alarm inputs, 1 alarm output |
| RS-485 Interface | Half-duplex mode |
| Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol | |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Menu Language | English |
| Power | 24 VAC |
| Max.30 W (IR:10 W) | |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000 V lightning protection, surge protection and voltage transient protection | |
| Mounting | Various mounting modes optional |
| Dimension | Ø 208 x 305 mm |
| Weight | 3.3kg |
-Bảo hành: 24 tháng.
