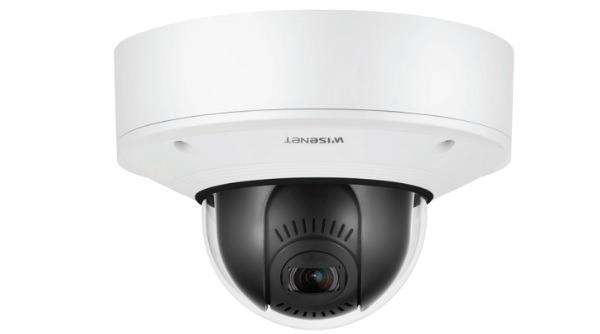

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XNV-6081Z/VAP
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264. MJPEG.
- Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.
- Độ phân giải camera ip: 2.0 Megapixel.
- Độ nhạy sáng: 0.015Lux@F1.4 (Color), 0.0015 Lux@ F1.4.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR.
- Hỗ trợ WiseStreamII.
- Tiêu chuẩn chống thấm nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10+.
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC, 24VAC (tùy chọn).
Đặc tính kỹ thuật
| VIDEO | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Effective Pixels | 1945(H) x 1097(V) |
| Min. Illumination | Color: 0.015Lux (F1.4, 1/30sec) |
| BW: 0.0015Lux (F1.4, 1/30sec) | |
| Video Out | USB: Micro USB type B, 1280x720 for installation |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
| Max. Aperture Ratio | F1.4 (Wide) ~ F3.6 (Tele) |
| Angular Field of View | H: 119.5° (Wide)~27.9° (Tele) |
| V: 62.8° (Wide)~15.7° (Tele) | |
| D: 142.1° (Wide)~32.0° (Tele) | |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) ±175˚ / 0~85˚ / ±175˚ |
| OPERATIONAL | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNR V |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color : Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | Support (Preset, Group) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, |
| Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, | |
| Audio detection, Sound classification, Shock detection | |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I / O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Handover | |
| Audio playback | |
| Audio In | Selectable (mic in/line in), |
| Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level : 1Vrms |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps (60Hz/50Hz) |
| MJPEG: Max. 30fps/25fps (60Hz/50Hz) | |
| Smart Codec | Manual (5ea area), WiseStream II |
| Video Quality Adjustment | H.264/H.265 : Target bitrate level control |
| MJPEG : Target bitrate level control | |
| Bitrate Control | H.264/H.265 : CBR or VBR |
| MJPEG : VBR | |
| Streaming | Unicast (20 users) / Multicast |
| Multiple streaming (Up to 10 profiles) | |
| Audio Compression | G.711 u-law / G.726 Selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC : 48Kbps at 16KHz | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) login authentication |
| Digest login authentication | |
| IP address filtering | |
| User access log | |
| 802.1X authentication (EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Recommended Browser: Google Chrome | |
| Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only) | |
| Memory | 1024MB RAM, 256MB Flash |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP67 / IP66 / IP6K9K, IK10+, NEMA4X |
| ELECTRICAL | |
| Input Voltage | PoE (IEEE802.3af, Class3), 12VDC, 24VAC (Optional) |
| Power Consumption | PoE : Max 11W, typical 4.80W |
| 12VDC : Max 9.5W, typical 3.71W | |
| 24VAC : Max 11W, typical 4.97W | |
| MECHANICAL | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Dimensions | Ø180x125mm |
| Weight | 1.75kg |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
