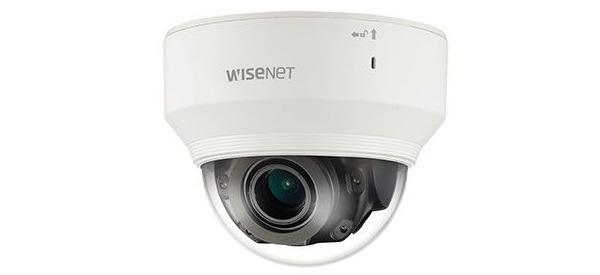

Camera IP Dome 4K hồng ngoại 12 Megapixel Hanwha Techwin WISENET PND-9080R/VAP
- Cảm biến hình ảnh: 1/1.7 inch 12.4M CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ phân giải camera ip: 12 Megapixel.
- Độ nhạy sáng: 0.3Lux@F1.6 (Color), 0Lux (B/W: IR LED on).
- Hỗ trợ khe cắm thẻ nhớ microSD/ SDHC/ SDXC dung lượng lưu trữ 128GB.
- Ống kính: 4.5 ~ 10mm (motorized varifocal lens).
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng quan sát Ngày và Đêm.
- Chức năng điều chỉnh độ lợi AGC.
- Chức năng chống sương mù Defog.
- Chức năng phát hiện chuyển động: Off / On (8ea, Polygonal).
- Chức năng vùng riêng tư: Off / On (16ea, Polygonal) - Color: Gray / Green / Red / Blue / Black / White.
- Chức năng theo dõi tự động số (Digital auto tracking).
- Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).
- Chức năng giảm nhiễu số 2D + 3D.
- Chức năng chống va đập: IK08.
- Nguồn điện cung cấp: 12VDC.
- Chức năng cấp nguồn qua mạng PoE.
- Công suất tiêu thụ: 12VDC: Max. 9.5W, PoE: Max. 10.5W.
- Kích thước: Ø140.8 x 113.0mm.
- Trọng lượng: 610g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/1.7 inch 12.4M CMOS |
| Total Pixels | 4,168(H) x 3,062(V) |
| Effective Pixels | 4,072(H) x 3,046(V) |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.3Lux (1/30sec, F1.6, 30IRE), 0.01Lux (2sec, F1.6, 30IRE). B/W: 0Lux (IR LED on) |
| S / N Ratio | 50dB |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 714 x 480(N), 702 x 576(P), for installation DIP connector type |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5 ~ 10mm (2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | [4096 x 2160] H: 100.3º (Wide) ~ 45.6º (Tele) / V: 49.7º (Wide) ~ 24.0º (Tele) |
| [3840 x 2160] H: 92.3º (Wide) ~ 42.6º (Tele) / V: 49.7º (Wide) ~ 24.0º (Tele) | |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
| Lens Type / Mount Type | P-Iris mode / Board-in type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Viewable Length | 30m |
| Camera Title | Off / On (Displayed up to 60 characters) |
| - W/W : English / Numeric / Special characters | |
| - China : English / Numeric / Special / Chinese characters | |
| - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSDR (Off / On) |
| Digital Noise Reduction | SSNR (2D+3D noise filter) (Off / On) |
| Motion Detection | Off / On (8ea, Polygonal) |
| Privacy Masking | Off / On (16ea, Polygonal) - Color: Gray / Green / Red / Blue / Black / White |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / OutdoorWhite Balance |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Flip / Mirror | Off / On, Hallway: 90° /270° |
| Intelligent Video Analytics | Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Defocus detection, Digital auto tracking - with metadata |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error |
| Alarm Events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail |
| Pixel Counter | Support (Plug-in viewer only) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG |
| Resolution | [8M mode] 4096 x 2160, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 [12M mode] 4000 x 3000, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480,640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264: 20fps@4000 x 3000, 30fps@4096 x 2160 MJPEG: 2fps@4000 x 3000 ~ 2592 x 1464, 15fps@1920 x 1080 ~ 320 x 240 |
| Video Quality Adjustment | H.264: Target bitrate level control, MJPEG: Quality level control |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 3 profiles) |
| Audio I/O | Built-in mic |
| Audio Compression Format | G.711 u-law / G.726 selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Audio Communication | Bi-directional audio (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Storage | SD/SDHC/SDXC (128GB) - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected, Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only) |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet Open Platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian |
| Web Viewer | Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10 |
| Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only | |
| Central Management Software | SmartViewer |
| Vandal Resistance | IK08 |
| ELECTRICAL | |
| Input Voltage / Current | 12VDC, PoE (IEEE802.3af, Class3) |
| Power Consumption | 12VDC: Max. 9.5W, PoE: Max. 10.5W |
| Color / Material | Ivory / Polycarbonate (PC) + Aluminum |
| Dimensions | Ø140.8 x 113.0mm |
| Weight | 610g |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
