Camera IP Dome Acusense hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2746G2-IZS

Camera IP Dome Acusense hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2746G2-IZS

  • MS 0016033
  • HIKVISION
Giá : 5,095,000 vnđ (Đã bao gồm VAT)

Camera IP Dome Acusense hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2746G2-IZS

Camera IP Dome Acusense hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2746G2-IZS

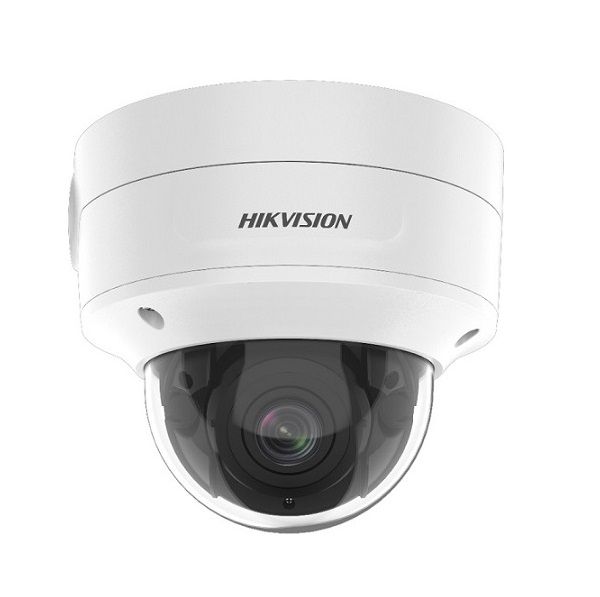

- HIKVISION DS-2CD2746G2-IZS là dòng camera IP Dome Acusense hồng ngoại có độ phân giải 4.0 Megapixel cho hình ảnh sắc nét, chất lượng cao.

- Cảm biến hình ảnh: 1/3-inch Progressive Scan CMOS.

- Độ phân giải: 4.0 Megapixel.

- Độ nhạy sáng: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR.

- Tầm quan sát hồng ngoại: Lên đến 40m.

- Tiêu chuẩn nén hình ảnh: H.265+, H.265, H.264+, H.264.

- Hỗ trợ chức năng chống ngược sáng WDR 120dB.

- Hỗ trợ chức năng giảm nhiễu 3D DNR.

- Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC lên đến 256GB.

- Hỗ trợ 1-port RJ45 10M/100M self-adaptive Ethernet.

- Hỗ trợ 1 ngõ vào và 1 ngõ ra báo động.

- Hỗ trợ 1 ngõ vào và 1 ngõ ra audio.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Nguồn điện: 12VDC, hỗ trợ cấp nguồn PoE.

Đặc tính kỹ thuật

ModelDS-2CD2746G2-IZS
Camera
Image Sensor1/3-inch Progressive Scan CMOS
Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day & NightIR cut filter
Slow ShutterYes
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
P/NP/N
Wide Dynamic Range120 dB
Power-off MemoryYes
Lens
Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
ApertureF1.4
Lens MountØ14
Iris TypeFixed
DORI
DORI2.8 to 12 mm:
Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m
Illuminator
IR RangeUp to 40 m
IR WavelengthYes
Smart Supplement LightYes
Supplement Light TypeIR
Video
Max. Resolution2688 × 1520
Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main Stream supports
H.265+Main stream supports
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
SNR≥ 52 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware ResetYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart EventScene change detection
Deep Learning Function
Face CaptureYes
Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
General
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%
PoE: 802.3af, Class 3
Power Consumption and Current12 VDC, 0.88 A, max. 10.5 W
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
Power InterfaceØ5.5 mm coaxial power plug
Camera MaterialMetal
Camera DimensionØ153.5 mm× 133.1 mm
Package Dimension244 mm × 174 mm × 173 mm
Camera WeightApprox. 845 g (1.9 lb.)
With Package WeightApprox. 1714 g (3.8 lb.)
Linkage MethodUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Web Client Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software ResetYes
Firmware VersionV5.5.112
Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1)
EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), IK10(IEC 62262:2002)

- Bảo hành: 24 tháng.
