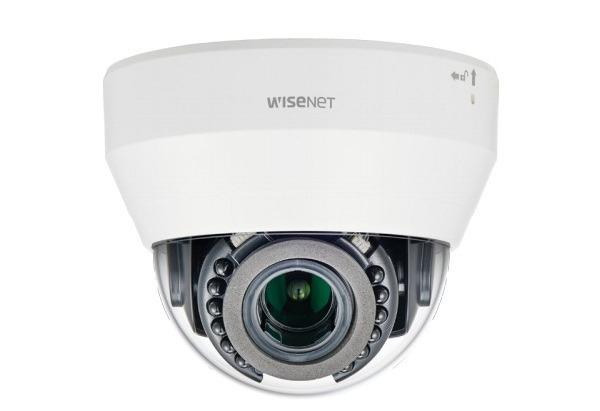

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET LND-V6070R/VVN
- Cảm biến hình ảnh: 1/2.9 inch CMOS.
- Độ phân giải camera ip: 2M (1920 x 1080) 30fps.
- Chuẩn nén hình ảnh: WiseStream II, H.265+, H.264, MJPEG.
- Ống kính cố định: 3.2 ~ 10 mm.
- Tầm quan sát hồng ngoại: 20 mét.
- Độ nhạy sáng: 0.095 Lux@F1.6 (Color), 0 Lux (B/W) (IR Led Bật).
- Chức năng quan sát Day & Night (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng bù ngược sáng BLC.
- Bộ nhớ: Micro SD/ SDHC, Local PC.
- Giảm tiếng ồn kỹ thuật số: SSNR.
- Hỗ trợ Hallway view, Phát hiện chuyển động, Phát hiện can thiệp.
- Hỗ trợ cấp nguồn qua mạng PoE.
Đặc tính kỹ thuật
| Model | LND-V6070R/VVN |
| Video | |
| Imaging Device | 1/2.9 inch 2.19M CMOS |
| Total Pixels | 2,000(H) x 1,121(V) |
| Effective Pixels | 1,984(H) x 1,105(V) |
| Min. Illumination | Color: 0.095Lux (F1.6), B/W: 0Lux (IR LED on) |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2 ~ 10mm (3.1x) varifocal |
| Max. Aperture Ratio | F1.6 ~ F2.9 |
| Angular Field of View | H: 101.6°(Wide) ~ 31.3°(Tele) V: 54.1°(Wide) ~ 17.8°(Tele) D: 120.6°(Wide) ~ 36.0°(Tele) |
| Min. Object Distance | 0.5m |
| Focus Control | Manual |
| Len/Mount Type | DC auto iris / Board-in type |
| Operational | |
| IR Viewable Length | 20m |
| Camera Title | Off / On (Displayed up to 15 characters) |
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off/ On) |
| Digital Noise Reduction | SSNR (Off / On) |
| Motion Detection | Off / On (4ea rectangler zones) |
| Privacy Masking | Off / On (6ea rectangler zones) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip/ Mirror | Off / On, Hallway view |
| Video & Audio Analytics | Tampering, Motion detection |
| Alarm Triggers | Motion detection, Tampering detection, SD card error |
| Alarm Events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.264, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 640 x 480, 640 x 360, 320 x 240 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Max. User Access | 6 users at unicast mode |
| Edge Storage | Micro SD/SDHC Max. 32GB |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API) |
| General | |
| Input Voltage / Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 6.5W |
| Color/ Material | White (RAL-9003) / Plastic |
| Operating Temperature | -10°C ~ +55°C (-22°F ~ 131°F)/ Less than 90% RH |
| Dimension (WxHxD) | Ø119.8 x 98.8mm |
| Weight | 274g |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Sản xuất tại Việt Nam.
- Bảo hành: 24 tháng.
