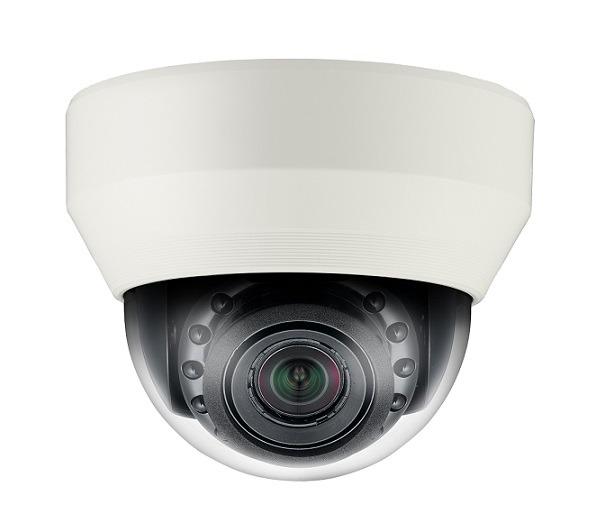

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET SND-6084R
- Độ phân giải camera ip: 2 Megapixel (1920 x 1080).
- Độ nhạy sáng: 0.03Lux@F1.2 (Màu), 0Lux@F1.2 (B/W: bật đèn LED hồng ngoại).
- Ống kính varifocal có động cơ: 3 ~ 8,5mm (2,8x).
- Tầm quan sát hồng ngoại: 15 mét.
- Bộ giải mã kép: H.264, MJPEG, Nhiều luồng.
- Chức năng chống ngược sáng WDR (120dB).
- Lấy nét đơn giản (V/F cơ giới), P-Iris, Defog.
- Phát hiện âm thanh/ khuôn mặt/ chuyển động.
- Truyền phát đa vụ, PoE, UPnP.
- Hỗ trợ âm thanh hai chiều.
- Khe cắm bộ nhớ SD/ SDHC/ SDXC.
Đặc tính kỹ thuật
| Model | SND-6084R |
| Video | |
| Imaging Device | 1/2.8 inch 2.38M CMOS |
| Effective Pixels | 1,944(H) x 1,104(V) |
| Min. Illumination | Color: 0.1Lux (F1.2, 50IRE), 0.0017Lux (2sec, F1.2, 50IRE), 0.03Lux (F1.2, 30IRE) B/W: 0Lux (F1.2, 50IRE, IR LED on), 0Lux (F1.2, 30IRE, IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3 ~ 8.5mm (2.8x) motorized varifocal |
| Max. Aperture Ratio | F1.2 |
| Angular Field of View | H: 105.5°(Wide) ~ 37.1°(Tele) V: 57.5°(Wide) ~ 21.0°(Tele) |
| Min. Object Distance | 0.5m |
| Focus Control | Simple focus(Motorized V/F) / Manual, Remote control via network, Button control (Manual, Simple focus) |
| Lens Type | DC auto iris, P-Iris |
| Pan / Tilt / Rotate | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Viewable Length | 15m (12 IR Led) |
| Camera Title | Off/ On (Displayed up to 45 characters) |
| Day & Night | Auto (ICR)/ Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off/ On) |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off/ On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (4ea 4 points polygonal zones) |
| Privacy Masking | Off / On (32 zones with 4 points of polygonal) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Off / On |
| IntelligentVideo Analytics | Tampering, Virtual line, Enter/ Exit, (Dis) Appear, Audio detection, Face detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, Localstorage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output |
| Network | |
| Ethernet | RJ-45 (10/ 100 BASE-T) |
| Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Audio In | Selectable (Mic in/ Line in), Built-in mic. Max output level: 1 Vrms Supply voltage: 2.5V DC (4mA), Input impedance: approx. 2K Ohm |
| Audio Out | Line out (3.5mm stereo mini jack) |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Edge Storage | SD/SDHC/SDXC - Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage) |
| Application Programming Interface | ONVIF profile S/G, HTTP API (SUNAPI) 2.0, SVNP 1.2 |
| General | |
| Input Voltage / Current | 12V DC ±10%, PoE (IEEE802.3af) |
| Power Consumption | Max. 9W |
| Color/ Material | Ivory / Polycarbonate (PC) |
| Dimension (WxHxD) | Ø132.1 x 107.6mm |
| Weight | 525g |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
