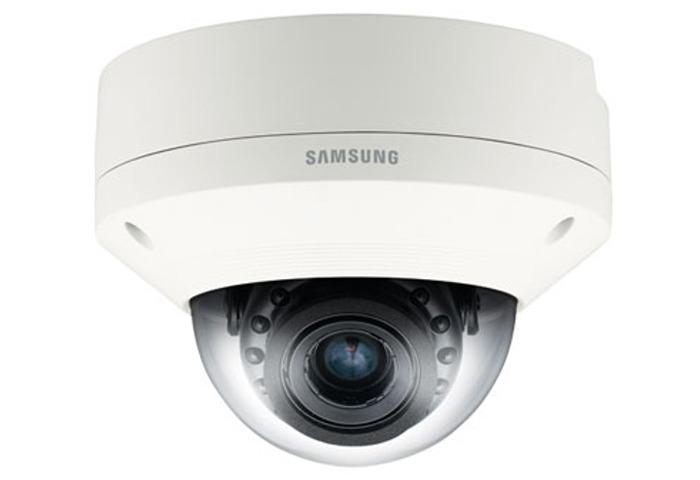

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET SNV-6085R/KAP
-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Chuẩn nén hình ảnh: H.264, MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel.
-Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 64GB.
-Ống kính: 10 ~ 23mm.
-Tỉ lệ Zoom: 2.3x.
-Góc quan sát theo chiều ngang: 31.3º ~ 13.9º/ theo chiều dọc: 17.1º ~ 7.8º.
-Số đèn LED hồng ngoại: 14 đèn LED hồng ngoại.
-Tầm quan sát hồng ngoại: 20 mét.
-Chức năng quan sát Ngày và Đêm.
Chức năng giảm nhiễu số 2D+3D.
-Chức năng vùng riêng tư: Off / On (4ea 4 points polygonal zones).
-Chức năng phát hiện chuyển động: Off / On (32 zones with 4 points of polygonal).
-Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).
-Chức năng chống sương mù Defog.
-Chức năng phân tích Video thông minh.
-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
-Tiêu chuẩn chống va đập: IK10.
-Nguồn điện cung cấp: 12VDC.
-Chức năng cấp nguồn qua mạng PoE.
-Kích thước: Ø160.0 x 118.5mm.
-Trọng lượng: 970g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch CMOS |
| Total Pixels | 1,952(H) x 1,116(V) |
| Effective Pixels | 1,944(H) x 1,104(V) |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.25Lux (F1.6, 50IRE), 0.09Lux (F1.6, 30IRE) |
| B/W: 0Lux (F1.6, 50IRE, IR LED on), 0Lux (F1.6, 30IRE, IR LED on) | |
| S / N Ratio | 50dB |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| DIP connector type | |
| Lens | |
| Focal Length (Zoom Ratio) | 10 ~ 23mm (2.3x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 31.3° (Wide) ~ 13.9° (Tele) / V: 17.1° (Wide) ~ 7.8° (Tele) |
| Min. Object Distance | 0.8m (2.62ft) |
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) |
| Lens Type / Mount Type | P-Iris / Board-in type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| IR LED | 14ea |
| Viewable Length | 20m |
| Camera Title | Off / On (Displayed up to 15 characters) |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSDR (Samsung Super Dynamic Range) (Off / On) |
| Digital Noise Reduction | SSNRIII (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (4ea 4 points polygonal zones) |
| Privacy Masking | Off / On (32 zones with 4 points of polygonal) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Off / On |
| Intelligent Video Analytics | Motion detection with metadata, Tampering, Defocus detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Motion detection, Tampering, Audio detection, Face detection, Video analytics, Network disconnection, Alarm input |
| Alarm Events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Max. Framerate | H.264: Max. 60fps at all resolutions |
| MJPEG: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768: Max. 15fps | |
| 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180: Max.30fps | |
| Smart Codec | Manual mode (Area-based: 5ea), Face detection mode |
| Video Quality Adjustment | H.264: Compression level, Target bitrate level control, MJPEG: Quality level control |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Audio In | Selectable (Mic in / Line in), Max output level: 1 Vrms |
| Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm | |
| Audio Out | Line out (3.5mm stereo mini jack) |
| Audio Compression Format | G.711 u-law / G.726 selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Audio Communication | Bi-directional audio |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 15 users at unicast mode |
| Storage | micro SD/SDHC/SDXC Max. 64G, NAS - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. Manual recording at local PC |
| Application Programming Interface | ONVIF profile S/G, HTTP API (SUNAPI) |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian |
| Web Viewer | Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10 |
| Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only | |
| Central Management Software | SmartViewer |
| ELECTRICAL | |
| Input Voltage / Current | 12VDC ±10%, 24V AC ±10%, PoE (IEEE802.3af) |
| Power Consumption | Max. 11W (Heater off), Max. 12.95W (Heater on) |
| Color/ Material | Ivory / Aluminum |
| Dimensions | Ø160.0 x 118.5mm |
| Weight | 970g |
-Hãng sản xuất: Hanwha Techwin Hàn Quốc.
-Sản xuất tại Korea.
-Bảo hành: 24 tháng.
