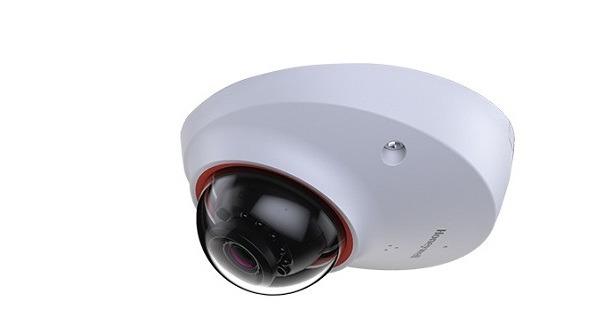

Camera IP Dome hồng ngoại 2.0 Megapixel HONEYWELL H2W2GR1
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính: 2.8mm, F2.0.
- Tốc độ khung hình: Lên đến 60 fps.
- Tầm quan sát hồng ngoại: 15 mét.
- Độ nhạy sáng tối thiểu: Colour: 0.001Lux @f/2.0, B/W: 0Lux @f/2.0 (IR on).
- Thẻ nhớ: Micro SDHC Capacity Max 32GB/ Micro SDXC Capacity Max 128GB.
- Chuẩn nén hình ảnh: H.265+, H.265, H.264 and MJPEG.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | H2W2GR1 |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | 1/2.8-inch 2Megapixel progressive scan CMOS |
| Number Of Pixels (H × V) | 2MP - 1920x1080 |
| Minimum Illumination | Colour: 0.001Lux @f/2.0, B/W: 0Lux @f/2.0 (IR on) |
| S/N Ratio | 50 dB minimum |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| IR Distance | 15m |
| Day/Night | Mechanical ICR (ON/ OFF/ AUTO selectable) |
| Backlight Compensation | BLC/ HLC/ WDR/SAC(Scene Adaptive Control) |
| Wide Dynamic Range (WDR) | 120dB (50/60fps off) |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual/ Customize Region |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D Noise Reduction (ON/ OFF selectable) |
| Privacy Masking | Up to 4 configurable areas |
| Defog | Auto/Manual/Off |
| Lens | 2.8mm, F2.0 |
| Angle Of View | H: 110°, V: 58° |
| Audio/Two-Way | 1 Built-in Mic |
| Ethernet | RJ-45 (10/100Base-T) |
| IP SPECIFICATIONS | |
| Video Compression | H.265+, H.265, H.264 and MJPEG Bit rate control (CBR and VBR) |
| Resolution | - 16:9: 1080p (1920×1080)/ 720p (1280×720) - 4:3: 1.3M (1280×960)/VGA (640×480) - Other: D1 (704×576/704×480)/ CIF (352×288/352×240) |
| Frame Rate | - Main stream: 1080P(1~50/60fps WDR off) - Sub stream: D1 (1~50/60fps WDR off) - Third stream: 1080P(1-25/30fps) Simultaneous Main stream and Third stream at 1080P (Main stream +Third stream <=68fps, WDR off, 2nd stream off) |
| Audio Compression | G.711a/ G.711Mu/ AAC/G.726 |
| Audio Stream | Simplex |
| Supported Web Browsers | IE11/Chrome (with application)/Firefox (earlier 52.0 version) |
| Supported OS | Windows® 7 32-bit/64-bit; Windows® 10 32-bit/64-bit |
| Supported Protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; SNMP |
| Compatibility | ONVIF Profile S, G and Q |
| Maximum Users Access | 20 users |
| Security | User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCI-DSS compliance, Hardware chipset for private key |
| Built-In Alarm & Event | - Event type: Motion Detection/ Video Tampering/ Face Detection/ SD Card Error/ SD Card Capacity Warning/ Audio Detection/ Object Abandoned/Object Missing/ Tripwire/ Intrusion - Event linkage: Recording on SD card, Email, Snapshot - Event ouput: ONVIF, ISOM |
| Micro SD | Micro SDHC Capacity Max 32GB Micro SDXC Capacity Max 128GB |
| Micro SD Function | - Event trigger recording - Continuous and scheduled recording - Automatic recording when network fails |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Power Supply | PoE(802.3af) Class 0/12VDC |
| Power Consumption | Max 4.4W |
| MECHANICAL | |
| Dimensions | 109.9 x 55.0mm (4.33 x 2.17in.) |
| Weight | Product weight: 334g (0.74lb) Package Weight: 730g (1.61lb) |
| Construction | Die-cast aluminum housing with powder coat |
| Construction Colour | RAL 9003 (White) |
| ENVIRONMENTAL | |
| Operating Temperature | –30°C to 60°C (–40°F to 140°F ) |
| Relative Humidity | 0% to 95%, non-condensing |
| Gore Vents | Yes |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| REGULATORY | |
| Emissions | FCC Part 15, CE (EN 55032); Complies with RCM (AS/NZS) |
| Immunity | CE (EN 50130-4) |
| Safety | North America UL Listed to UL/CSA 60950-1, CE (EN 60950-1) |
| RoHS | EN50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
