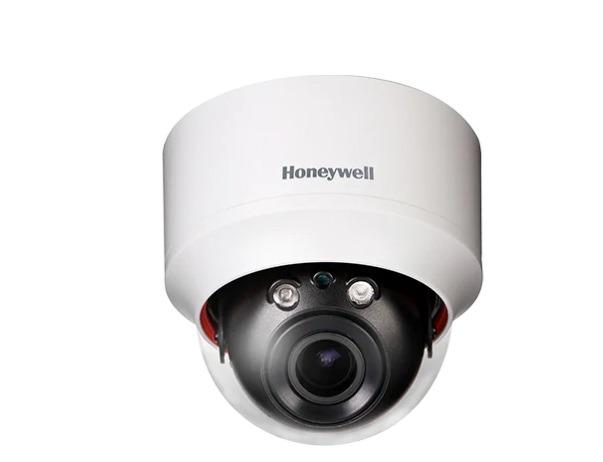

Camera IP Dome hồng ngoại 2.0 Megapixel HONEYWELL H3W2GR2
- Cảm biến hình ảnh: 1/2.7-inch progressive CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính: 7–22 mm, MFZ, F1.4.
- Tầm quan sát hồng ngoại: 20 mét.
- Tốc độ khung hình: Lên đến 30 fps.
- Độ nhạy sáng tối thiểu: 0.01 lux colour/0 lux with IR LEDs on @ F1.4.
- Thẻ nhớ: Up to 128 GB microSDHC card Class 10 (not included).
- Chuẩn nén hình ảnh: H.264/H.264H/H.264B/MJPEG.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC/24VAC.
Đặc tính kỹ thuật
| Model | H3W2GR2 |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | 1/2.7-inch 2 MP progressive CMOS |
| Number Of Pixels (H×V) | 1920x1080 |
| Minimum Illumination | 0.01 lux colour/0 lux with IR LEDs on @ F1.4 |
| S/N Ratio | 50dB or more |
| Electronic Shutter Speed | Auto, Manual, 1/3(4)-1/10 000 s |
| IR Distance | Up to 20m (65'), depending on scene reflectance |
| Day/Night | Auto(ICR)/Colour/BW |
| Backlight Compensation | BLC/HLC |
| Wide Dynamic Range | 120 dB |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| Privacy Masking | Up to 4 areas |
| Corridor Mode | Yes |
| Lens | 7-22 mm, MFZ, F1.4 |
| Horizontal Angle Of View | 41°-18° |
| Audio/Two-Way | Line In/Out (Built-in microphone) |
| Alarm Input/Output | 2/1 |
| IP SPECIFICATIONS | |
| Video Compression | H.264/H.264H/H.264B/MJPEG |
| Resolution | 1080p (1920x1080)/ SXGA (1280x1024)/ 1.3M(1280x960)/ 720p (1280x720)/ D1 (704x576/ 704x480)/ CIF (352x288/352x240) |
| Frame Rate | MAIN STREAM: 1-25 fps (1080p, SXGA-1280x1024, 1280x960, 720p, D1-704x576) SUB STREAM: 1-25 fps (D1-704x576, CIF-352x288) TRIPLE STREAM: 720p 1-14 fps, D1 (704x576) 1-25 fps, CIF (352x288) 1-25 fps |
| Audio Compression | G.711a/G.711u/AAC |
| Audio Stream | Dual Channel |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, QoS, SNMP v2c/v3, LDAP (Client), NFS, RTCP, Bonjour |
| Compatibility | ONVIF Profile S/G |
| Max. User Access | 20 users |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Input Voltage | 12VDC +/-10%, 24VAC +/-10%, PoE IEEE 802.3af |
| Ac Frequency | 50/60 Hz |
| Power Consumption | 12VDC/24VAC 9W max, PoE (802.3af) Class 0 |
| MECHANICAL | |
| Dimensions | 126.0 × 122.0 mm (4.96' x 4.80') |
| Product Weight | 0.57kg (1.26 lb) |
| Package Weight | 0.7 kg (1.54 lb) |
| Construction | Plastic Housing |
| Construction Colour | RAL9003 (White) |
| Recording And Storage | Up to 128 GB microSDHC card Class 10 (not included) |
| ENVIRONMENTAL | |
| Temperature | -30°C to 50°C (-22°F to 122°F) |
| Relative Humidity | 0% to 95%, non-condensing |
| REGULATORY | |
| Emissions | FCC Part 15, CE (EN 55022); Complies with RCM (AS/NZS) |
| Immunity | CE (EN 50130-4) |
| Safety | North America UL Listed to UL/CSA 60950-1, CE (EN 60950-1) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
