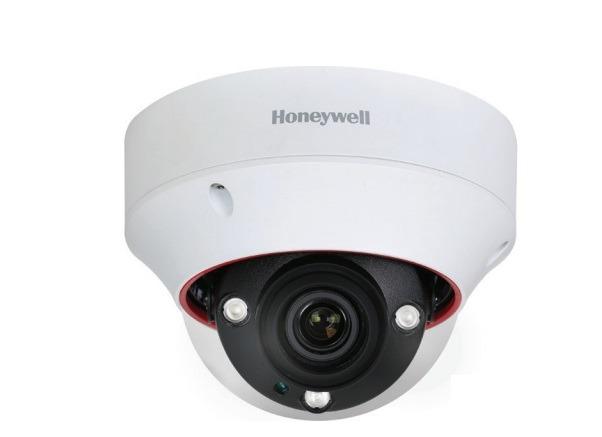

Camera IP Dome hồng ngoại 2.0 Megapixel HONEYWELL H4W2GR1V
- Cảm biến hình ảnh: 1/2.8-inch progressive scan CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Ống kính: 2.7-13.5 mm MFZ, DC IRIS, optical zoom 5x lens F1.6.
- Tốc độ khung hình: Lên đến 60 fps.
- Tầm quan sát hồng ngoại: 50 mét.
- Độ nhạy sáng tối thiểu: 0.001Lux (Color or B/W, IR off); 0Lux (In B/W & IR on).
- Thẻ nhớ: Micro SDHC Capacity Max 32GB/ Micro SDXC Capacity Max 128GB.
- Chuẩn nén hình ảnh: H.265+, H.265, H.264 and MJPEG.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn va đập: IK10.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | H4W2GR1V |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | 1/2.8-inch 2 Megapixel progressive scan CMOS |
| Number Of Pixels (H×V) | 2MP - 1920x1080 |
| Minimum Illumination @ F1.6 | 0.001Lux (Color or B/W, IR off) 0Lux (In B/W & IR on) |
| S/N Ratio | 50 dB minimum |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| IR Distance | 50m |
| Day/Night | Mechanical ICR (ON / OFF / AUTO selectable) |
| Backlight Compensation | BLC/HLC/WDR/SAC (Scene Adaptive Control) |
| Wide Dynamic Range (WDR) | 120dB (50/60fps off) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual Customize Region |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D Noise Reduction (ON / OFF selectable) |
| Privacy Masking | Up to 4 configurable areas |
| Defog | Auto/Manual/Off |
| Lens | 2.7-13.5 mm MFZ, DC IRIS, optical zoom 5x lens F1.6 |
| Angle Of View | FOV depending on different resolution, H: 110° - 32°, V: 59° - 19° |
| Audio/Two-Way | Line In/Out |
| Alarm Input/Output | 2 In/1 Out |
| Analog Output Support | Supported |
| Ethernet | RJ-45 (10/100Base-T) |
| IP SPECIFICATIONS | |
| Video Compression | H.265+, H.265, H.264 and MJPEG bit rate control (CBR and VBR) |
| Resolution | - 16:9: 1080p (1920×1080)/ 720p (1280×720) - 4:3: 1.3M (1280×960)/VGA (640×480) - Other: D1 (704×576/704×480)/ CIF (352×288/352×240) |
| Frame Rate | - Main stream: 1080P (1~50/60fps WDR off) - Sub stream: D1 (1~50/60fps WDR off) - Third stream: 1080P (1-25/30fps) Simultaneous Main stream and Third stream at 1080P (Main stream +Third stream <=68fps, WDR off, 2nd stream off) |
| Audio Compression | G.711a/ G.711Mu/ AAC/G.726 |
| Audio Stream | Full duplex, simplex |
| Supported Web Browsers | IE11/Chrome (with application)/Firefox (earlier than 52.0 version) |
| Supported OS | Windows® 7 32-bit/64-bit; Windows® 10 32-bit/64-bit |
| Supported Protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; SNMP |
| Compatibility | ONVIF Profile S, G and Q |
| Maximum Users Access | 20 users |
| Security | User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCIDSS compliance, Hardware chipset for private key |
| Heat Map | Support |
| Built-In Alarm & Event | - Event type: Motion Detection/Video Tampering/Face Detection/SD Card Error/SD Card Capacity Warning/Audio Detection/ Object Abandoned/Object Missing/Tripwire/Intrusion - Event Linkage: Recording on SD card, Relay output, Email, Snapshot - Event output: ONVIF, ISOM |
| Micro SD | Micro SDHC Capacity Max 32GB Micro SDXC Capacity Max 128GB |
| Micro SD Function | - Event trigger recording - Continuous and scheduled recording - Automatic recording when network fails |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Power Supply | PoE+(802.3at) Class 4/12VDC/24VAC |
| Long Distance PoE Support | 3X POE (300m @100Mbps) |
| AC Frequency | 50/60 Hz |
| Power Consumption | Max 22W |
| Auxiliary Power Supply | 2.0W , DC12V (+/-5%) |
| MECHANICAL | |
| Dimensions | 6.2-inch × 4.6-inch ( 159.0 × 118.0 mm) |
| Weight | Product weight: 2.46lb (1117g) Package Weight: 4.40lb (1994g) |
| Construction | Die-cast aluminum housing with powder coat |
| Construction Colour | RAL 9003 (White) |
| ENVIRONMENTAL | |
| Operating Temperature | –40°F to 140°F (–40°C to 60°C) |
| Relative Humidity | 0% to 95%, non-condensing |
| Gore Vents | Yes |
| Ingress Protection | IP 67 |
| Impact Resistance | IK10 |
| Heater, Fan Option | Heater, Fan |
| REGULATORY | |
| Emissions | FCC Part 15, CE (EN 55032); Complies with RCM (AS/NZS) |
| Immunity | CE (EN 50130-4) |
| Safety | North America UL Listed to UL/CSA 60950-1, CE (EN 60950-1); North America UL Listed to UL/CSA 60950-22, CE (EN 60950-22) |
| Rohs | EN50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
