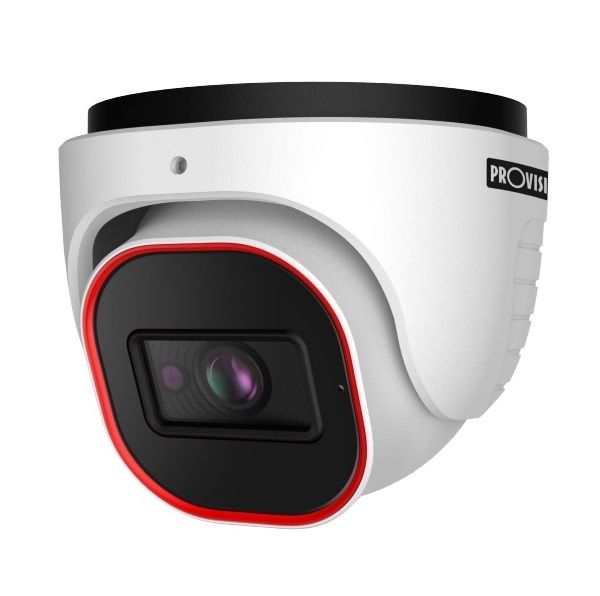

Camera IP Dome hồng ngoại 2.0 Megapixel Provision-ISR DI-320IPEN-MVF
- Cảm biến hình ảnh: 1/2.8 inch CMOS (16:9).
- Độ phân giải: 1920x1080/25fps (2MP).
- Ống kính: 2.8-12mm MVF with Auto Focus (103°-32°).
- Hỗ trợ chế độ True Day & Night - ICR.
- Tầm quan sát hồng ngoại: 40 mét (3 đèn LED hồng ngoại công suất cao).
- Chuẩn nén hình ảnh: H.265S/H.264S, H.265+/H.264+/H.265/H.264/MJPEG.
- Hỗ trợ các tính năng camera: True WDR (120dB), BLC, HLC, ROI.
- Hỗ trợ thẻ SD (lên đến 128GB).
- Đầu vào âm thanh (có microphone tích hợp).
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn cấp: DC12V/~900mA / PoE/~10W.
Thông số kỹ thuật
| Image Sensor | 1/2.8 inch CMOS (16:9) |
| Effective Pixels | 1920x1080 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Frame Rate | 1-25/30FPS |
| Day & Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on |
| Audio compression | G.711A/G.711U |
| Communication | One-way Audio |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| Analytics | General Alanlytics: Camera Tampering AI: (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting AI: (Face Detection): 10 Faces per frame AI: Heatmap |
| Video Compression | H.265S/H.264S*, H.265+/H.264+/H.265/H.264/MJPEG |
| Resolution | 2MP / 1MP / D1 (704x576) / QVGA (480x240) / CIF (352x288) |
| Multi-Stream | Master Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps) Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps) |
| Bit rate | 64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| IR Distance | 40m (3 High-Power IR LED) |
| Lens (Field of View) | 2.8-12mm MVF with Auto Focus (103°-32°) |
| Iris | DC Iris |
| Lens Mount | Ø14 Mount |
| Protection Rate | Water Proof: IP67 |
| Bracket | 3-Axis Bracket |
| Dimensions | Ø113mm×99.6mm |
| Weight (gross) | ~640g |
| Network | RJ45 (+PoE) |
| Power | DC Socket |
| Audio Connectivity | Built-in Microphone + Audio Input |
| SD Card | Event/Schedule based Main/Substream recording (Up to 128Gb) |
| Hard Reset Button | Yes |
| Remote Monitoring | IE Browsing, VMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | Yes |
| Power Supply | DC12V/~900mA / PoE/~10W |
| Work Environment | -30°C~60°C, 10%~90% Humidity |
| Junction Box | PR-JB14IP66 - PR-JB14IP64 - PR-WB-A |
- Bảo hành: 24 tháng.
