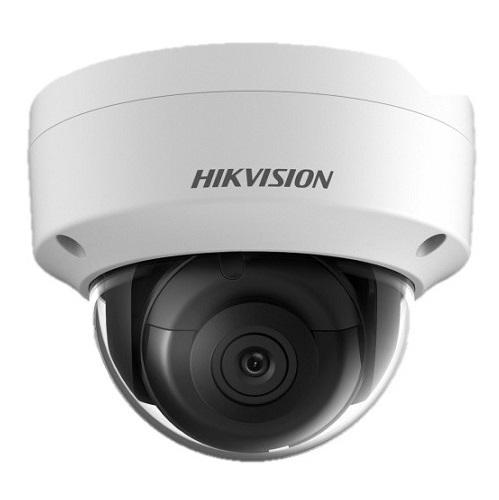

Camera IP Dome hồng ngoại 3.0 Megapixel HIKVISION DS-2CD2135FWD-IS
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải: 3.0 Megapixel (2048×1536@25fps).
- Ống kính cố định: 2.8mm (4/6/8/12mm).
- Độ nhạy sáng: 0.005Lux@F1.2.
- Tầm camera quan sát hồng ngoại: 30 mét.
- Chức năng quan sát Ngày và Đêm (IR-CUT).
- Chức năng chống ngược sáng 120dB WDR.
- Chức năng điều chỉnh độ lợi AGC.
- Chức năng giảm nhiễu số 3D-DNR.
- Hỗ trợ khe cắm thẻ nhớ microSD 128GB (max).
- Chức năng phát hiện khuôn mặt, cổng âm thanh.
- Hỗ trợ 4 kiểu phân tích hành vi.
- Nguồn điện: 12VDC.
- Chức năng cấp nguồn qua mạng PoE.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
- Kích thước: Φ111 × 82.4mm.
- Trọng lượng: 500g.
Đặc tính kỹ thuật
| Model | DS-2CD2135FWD-IS |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Support |
| Lens | 2.8 mm, horizontal field of view: 98° |
| 4 mm, horizontal field of view: 78.7° | |
| 6 mm, horizontal field of view: 48° | |
| 8 mm, horizontal field of view: 37° | |
| 12 mm, horizontal field of view: 23° | |
| Lens Mount | M12 |
| Iris | F1.6 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 |
| Sub stream: H.265/H.264/MJPEG | |
| Third stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression (-S) | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate (-S) | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Image | |
| Max. Resolution | 2048 × 1536 |
| Main Stream | 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280×720) |
| 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280×720) | |
| Sub Stream | 50Hz: 25fps (640 × 360, 352 × 288) |
| 60Hz: 30fps (640 × 360, 352 × 240) | |
| Third Stream | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) |
| 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) | |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software |
| ROI (Region of Interest) | Support 1 fixed region for mainstream and sub stream separately |
| Day/Night Switch | Auto/Scheduled/Alarm Triggered (-S) |
| Audio (-S) | |
| Environment Noise Filtering | Support |
| Audio I/O | Support, mono soundtrack |
| Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Network | |
| Network Storage | Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| General Function | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Audio (-S) | 1 audio input (line in), 1 audio output interface |
| Alarm (-S) | 1 alarm input, 1 alarm output |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported |
| Object Removal Detection | Objects removed from the pre-defined region, such as the exhibits on display. |
| Unattended Baggage Detection | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Face Detection | Human face appears in the image can be detected and trigger linkage method |
| General | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 W |
| PoE(802.3af, class 3), 7 W | |
| IR Range | Up to 30 m |
| Protection Level | IP67, IK10 |
| Dimensions | Camera: Ø 111 x 82.4 mm |
| Package: 134 x 134 x 108 mm | |
| Weight | Camera: 500 g |
- Bảo hành: 24 tháng.
