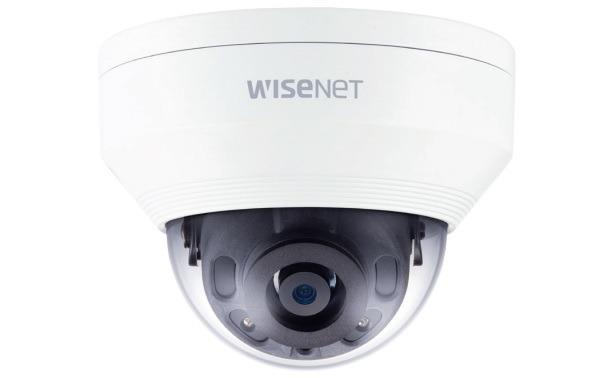

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET QNV-8030R/VAP
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lưu trữ 128GB.
- Độ nhạy sáng: 0.15Lux (Màu), 0Lux (B / W, bật đèn LED IR).
- Độ phân giải camera ip: 5.0 Megapixel (2592 x 1944).
- Ống kính cố định: 6 mm.
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng phát hiện giả mạo, phát hiện chuyển động, phát hiện lệch tâm.
- Hỗ trợ WiseStream II.
- Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cấp nguồn qua mạng PoE.
Đặc tính kỹ thuật
| VIDEO | |
| Imaging Device | 1/2.8 inch 5MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Min. Illumination | Color: 0.15Lux (F2.0, 1/30sec) |
| BW: 0Lux (IR LED on) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480 for installation |
| LENS | |
| Focal Length (Zoom Ratio) | 6.0mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 49.4°/ V: 37.4°/ D: 61.0° |
| Focus Control | Fixed |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~67˚ / 0˚~355˚ |
| OPERATIONAL | |
| IR Viewable Length | 30m (164.04ft) |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Directional/Virtual Line detection, Motion detection, Enter/Exit, Tampering |
| Alarm I / O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Resolution | 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Max. Framerate | H.265/H.264 : Maximum 30fps / MJPEG : Maximum 15fps |
| Smart Codec | WiseStream II |
| Video Quality Adjustment | H.264/H.265 : Target bitrate level control |
| MJPEG : Target bitrate level control | |
| Bitrate Control | H.264/H.265 : CBR or VBR |
| MJPEG : VBR | |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) login authentication |
| Digest login authentication | |
| IP address filtering | |
| User access log | |
| 802.1X authentication (EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Recommended Browser: Google Chrome | |
| Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only) | |
| Memory | 512MB RAM, 256MB Flash |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| ELECTRICAL | |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE : Maximum 7.2W, typical 5.4W |
| MECHANICAL | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Dimensions | Ø120.3 x 91.7mm |
| Weight | 510g |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
