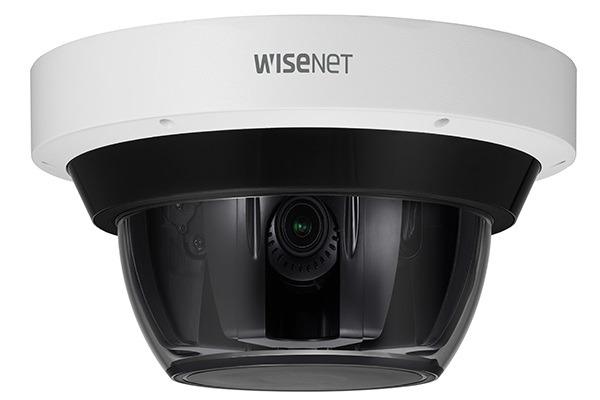

Camera IP Dome hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET PNM-9085RQZ
- Cảm biến hình ảnh: 1/1.8 inch 5MP CMOS.
- Chuẩn nén hình ảnh: H.265/H.264, MJPEG.
- Độ phân giải: 5.0 Megapixel.
- Độ nhạy sáng: Color: 0.11lux (F1.6, 30 IRE), BW: 0Lux (IR LED on).
- Ống kính: 4.13 ~ 9.4mm (2.3x) motorized varifocal.
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng camera quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR.
- Chức năng giảm nhiễu số SSNRV.
- Chức năng ổn định hình ảnh số Digital Image Stabilization.
- Chức năng chống sương mù Defog.
- Hỗ trợ 4 khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lưu trữ 256GB (mỗi kênh).
- Hỗ trợ hệ điều hành: Windows 7, 8.1, 10, Max OS X 10.3.
- Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 12VDC.
- Kích thước: ∮315x145.9mm.
- Trọng lượng: 5.2kg.
Features
- 5MP x 4ch multi-directional camera.
- Motorized PTRZ support.
- Max. 30fps@5MP (H.265, H.264).
- 4.13~9.4mm (2.3x) motorized varifocal lens.
- IR viewable length: 30m.
- H.265, H.264, MJPEG codec, Multi streaming.
- Video analytics, WiseStreamII.
- IP66, IK10, NEMA4X.
Đặc tính kỹ thuật
| Mdoel | PNM-9085RQZ |
| Video | |
| Imaging Device | 1/1.8 inch 5MP CMOS: each CH |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.11lux(F1.6,30 IRE) BW: 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.13~9.4mm(2.3x)motorized varifocal |
| Max. Aperture Ratio | F1.92(Wide)~F2.67(Tele) |
| Angular Field of View | H: 87.58°(Wide)~37.34°(Tele) / V: 64.58°(Wide)~28.04°(Tele) / D: 112.46°(Wide)~46.85°(Tele) |
| Min. Object Distance | 1.2m |
| Focus Control | Simple focus |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) 0~360˚ / 35~80˚ / 0~90˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 30m |
| Network | |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 16 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.13 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 512GB(Each CH) |
| Memory | 5GB RAM, 1280MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / Less than 90% RH Start up should be above at -35˚C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | HPoE, 12VDC |
| Power Consumption | Max. 45W, Typical: 32W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Dimensions | ∮315x145.9mm |
| Weight | 5.2kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
