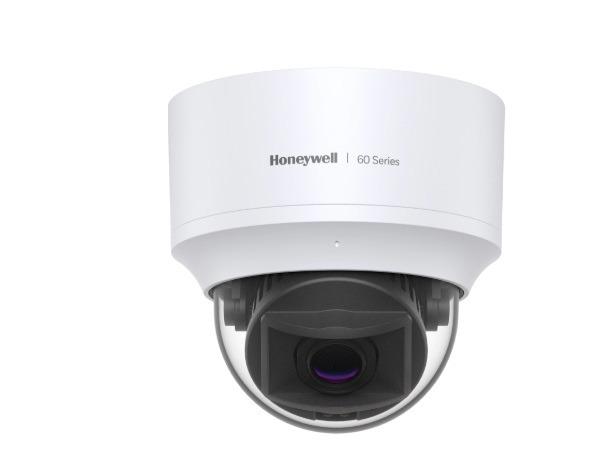

Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL HC60W35R2
- Cảm biến hình ảnh: 1/2.8-inch CMOS (5.18 x 3.89 mm).
- Độ phân giải: 5.0 Megapixel.
- Ống kính: 22.7-12mm, MFZ, F1.4-2.8.
- Tốc độ khung hình: Lên đến 60 fps.
- Độ nhạy sáng tối thiểu: 0.01 lux (colour)/0 lux (B/W) with IR LEDs on.
- Camera quan sat ỗ trợ khe cắm thẻ nhớ Micro SD, Micro SDHC, Micro SDXC up to 256GB.
- Tầm quan sát hồng ngoại: 30 mét.
- Chuẩn nén hình ảnh: H.265 HEVC/ H.264/ MJPEG, Smart Codec.
- Tiêu chuẩn chống va đập: IK10.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12 VDC/ 24VAC.
Đặc tính kỹ thuật
| Model | HC60W35R2 |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive |
| Image Sensor | 1/2.8-inch CMOS (5.18 x 3.89 mm) |
| Number Of Pixels (H × V) | 5 MP (2560 x 1920) |
| Min. illumination (Color/B&W) | 0.04 Lux/ 0Lux (@F1.4, IR on) |
| S/N Ratio | 60 dB |
| Electronic Shutter Speed | 1/32000 ~ 1/30 |
| IR Distance | Up to 30 m (98 ft) |
| IR Light Control | Smart IR (Auto/ Manual)/ OFF, External IR trigger by output |
| IR Light Number | 4 |
| Removable IR-Cut Filter | Yes |
| Day/Night | Auto/ Day/ Night/ Synchronize with digital input/ Schedule |
| Backlight Compensation | WDR, HLC |
| White Balance | Auto/ Fixed Current/ Manual |
| Gain Control | 0-100 % |
| Wide Dynamic Range | >120 dB |
| Noise Reduction | 3D DNR |
| Lens | 2.7 ~ 13.5 mm, MFZ, P-IRIS, F 1.4 ~ F 2.8 |
| Angle Of View | H: 100° ~ 30°, V: 72° ~ 23° |
| G-Sensor | Support Camera Direction OSD Display (Default - Off) |
| Privacy Masking | Off/ On (5 Areas) |
| Defog | Support |
| Encryption Chipset | Built-in FIPS encryption Chipset |
| Local Storage | Micro SD/ SDHC/ SDXC card slot (up to 256 GB), SD Card encryption |
| Micro USB | Support Wifi Dongle for configuration |
| VIDEO | |
| Video Compression | H.265 HEVC/ H.264/ MJPEG, Smart Codec |
| Resolution (16/9) | 2560 x 1440/ 1920 x 1080/ 1600 x 904/ 1360 x 768/1280 x 720/ 640 x 360 |
| Resolution (4/3) | 2560 x 1920/ 1600 x 1200/ 1280 x 960/ 640 x 480 |
| Number of Video Streams | 3 |
| Frame Rate Main Stream & Frame Rate Second Stream | 2560 x 1440/ 1920 x 1080/ 1600 x 904/ 1360 x 768/ 1280 x 720/ 640 x 360 (1-25/30 fps), 1920 x 1080/ 1600 x 904/ 1360 x 768/ 1280 x 720/ 640 x 360 (1-50/60 fps), 2560 x 1440 (1-50 fps) |
| Frame Rate Third Stream | 1280 x 960/ 640 x 480 (1-25/ 30 fps) 1280 x 720/ 640 x 360 (1-50/ 60 fps) |
| Bit Rate (Control) | 20 K ~ 80 Mbps |
| AUDIO | |
| Audio Compression | G.711A/ G.711MU/ G.726 |
| Audio Stream | Full duplex, Simplex |
| Audio Interface | Line In/ Out, Built-in Microphone |
| NETWORK | |
| Ethernet | 10 Base-T/ 100 Base-TX Ethernet (RJ-45) |
| Supported Web Browsers | Chrome 79.0 Internet Explorer 11 |
| Supported OS | Microsoft Windows 10 |
| Protocols | IPv4, IPv6, TCP/ IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP/ Multicast, CIFS/ SMB, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Interoperability | ONVIF Profile G/ S |
| Maximum Users Access | 10 Users |
| Security | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/ 256, SSH/ Telnet closed, PCIDSS compliance, FIPS Chipset Built-In |
| Languages Supported | English, French, German, Italian, Japanese, Portuguese, Russian,Spanish, Traditional Chinese |
| EVENTS/ ANALYTICS | |
| Built-in Video Analytics | Intrusion, Loiter, Line crossing, Unattended object, Missing object, Face detection |
| Event type | Video motion detection, Periodically, Alarm input, System boot, Recording notification, Camera tampering detection |
| Event linkage | Event notification using digital output, HTTP, Email and MicroSD card |
| Region Of Interest | 5 |
| ELECTRICAL | |
| Power Supply | 12 VDC 24 VAC (50/ 60 Hz), PoE (IEEE 802.3 af, Class 0) |
| Power Consumption | MAX 12.95W |
| Alarm Inputs/ Outputs | 2 In/ 1 Relay Out |
| MECHANICAL | |
| Dimensions (Ø x H) | Ø 126.0 mm x 122.0 mm (Ø 5.0’’ x 4.8’’) |
| Dome diameter | 91.0 mm (3.6’’) |
| Product Weight | 0.58 kg (1.28 lb) |
| Package Weight | 1.14 kg (2.51 lb) |
| Body Material | Polycarbonate/ Metal (die casting aluminum with liquid painting |
| Construction Color | RAL 120-1 (Lyric White) |
| ENVIRONMENTAL | |
| Operating Temperature | Starting Temperature: 0 °C ~ 60 °C (32°F ~ 140 °F) Working Temperature: -10 °C ~ 60 °C (14 °F ~ 140 °F) |
| Relative Humidity | Less than 90 %, non-condensing |
| Ingress Protection | IP 52 |
| Impact Resistance | IK 10 (bubble only |
| REGULATORY | |
| Emissions | FCC PART 15, CE (EN 55032) |
| Immunity | CE (EN 50130-4) |
| Safety | UL LISTED TO UL/ CSA 62368-1, CE (EN 62368-1) |
| RoHS | CE (EN 50581), EAC (TR EAEU 037/ 2016), UAE (Cabinet Decree No.10 of 2017) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
