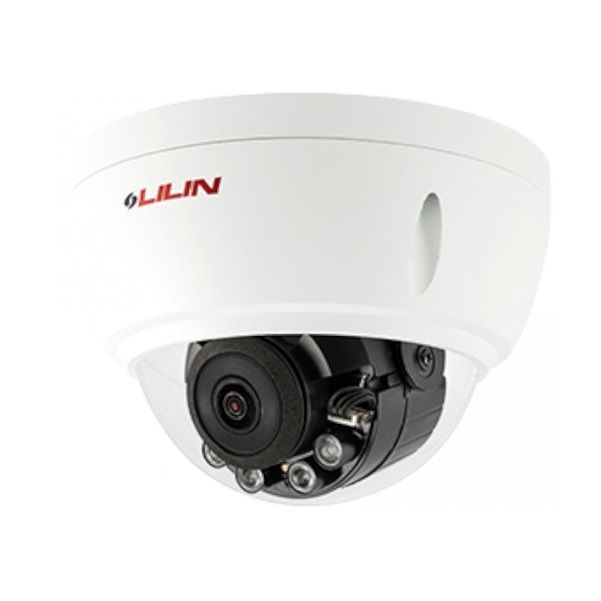

Camera IP Dome hồng ngoại 5.0 Megapixel LILIN V1R6052E2
- Cảm biến hình ảnh: 1/2.7 inch CMOS image sensor.
- Độ phân giải: 5.0 megapixel.
- Hỗ trợ các tính năng camera: 3D-NR, 2D WDR, AGC.
- Ống kính: 2.8mm.
- Tầm quan sát hống ngoại: 30 mét.
- Hỗ trợ PoE.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật
| Resolution | 5MP |
| Focal length | 2.8mm |
| Aperture | F2.2 |
| Iris Control | Fixed |
| Angle of View (HxVxD) | 108.9 / 59.6 / 130.4 |
| Pick Up Element | 1/2.7 inch CMOS image sensor |
| Effective Pixels | 2880 (H) × 1620(V) = 4,665,600 (Pixels) |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| Min. Illumination | Color: 0.16 Lux at F2.2 ; B/W: 0.02 Lux at F2.2 ; 0 Lux with IR LED ON |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 48 dB Variable Gain |
| EV (Exposure Value) | Adjustable |
| S/N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 |
| High Dynamic Range | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Defog |
| Infrared LED | 850nm |
| Smart IR | 30M |
| IP Rating | IP66 |
| Vandal Resistant Rating | IK10 |
| CE Certification | Yes, EMI Class A |
| FCC Certification | Yes, EMI Class A |
| UKCA Certification | Yes, EMI Class A |
| Starting Temperature | -10°C – +50°C (-14°F – 122°F) |
| Operating Temperature | -30°C – +50°C (-22°F – 122°F) |
| Storage Temperature | -25°C – +60°C (-13°F – 140°F) |
| Humidity | 0% – 90% RH |
| Dimension | Ø133 x 101(H) mm |
| Weight | 530g |
| Power Supply | PoE (IEEE 802.3af compliant) |
| Power Consumption | POE, 7.3W |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 5MP(2880 x 1616), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 3 |
| Video Bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| Artificial Intelligence | People / Car / Detection Zone / Detection Line |
| Event Triggers | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata |
| Event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Push Service / Global Counter / Virtual Input |
| OSD | Position configurable text overlay for date, time, camera ID, event status |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Mobile Application | Integrated to LILIN mobile app with iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
- Bảo hành: 12 tháng.
