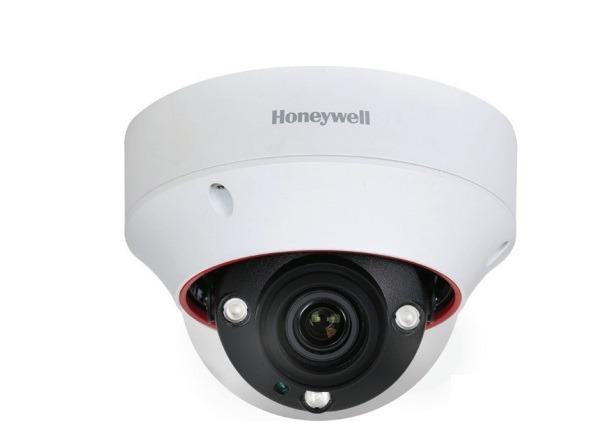

Camera IP Dome hồng ngoại 6.0 Megapixel HONEYWELL H4L6GR2
- Cảm biến hình ảnh: 1/1.8-inch progressive CMOS.
- Độ phân giải camera ip: 6.0 Megapixel.
- Ống kính: 4.1-16.4 mm, MFZ, F1.53.
- Tốc độ khung hình: Lên đến 30 fps.
- Tầm quan sát hồng ngoại: 50 mét.
- Độ nhạy sáng tối thiểu: 0.004 lux color @ F1.53, 0 lux B/W with IR LEDs on @F1.53.
- Thẻ nhớ: Up to 128 GB microSDHC card Class 10 (not included).
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG; Bit rate control (CBR and VBR).
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn va đập: IK10.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC/ 24VAC.
Đặc tính kỹ thuật
| Model | H4L6GR2 |
| Operational | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | 1/1.8-inch 6 MP progressive CMOS |
| Number Of Pixels (H×V) | 3072 × 2048 |
| Minimum Illumination | 0.004 lux color @ F1.53, 0 lux B/W with IR LEDs on @ F1.53 |
| S/N Ratio | ≥ 50 dB |
| Electronic Shutter Speed | Auto, Manual, 1/30 – 1/100,000 s |
| IR Distance | Up to 50 m (164 ft.), depending on scene reflectance |
| Day/Night | Auto (ICR)/Color/BW |
| Backlight Compensation | BLC/HLC/DWDR/SSA |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/ Customize Region |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| Privacy Masking | Up to 4 configurable areas |
| Electronic Image Stabilization | Off/On |
| Defog | Auto/Manual/Off |
| Lens | 4.1-16.4 mm, MFZ, F1.53 |
| Angle Of View | Horizontal: 107° - 35° |
| Audio/Two-Way | Line In/Out |
| Alarm Input/Output | 2/1 |
| Analog Output Support | BNC |
| Ethernet | RJ-45 (100/1000Base-T) |
| IP Specifications | |
| Video Compression | H.265/H.264/MJPEG; Bit rate control (CBR and VBR) |
| Resolution | - 16:9: 3M (2304×1296)/ 1080p (1920×1080)/ 720p (1280×720) - 4:3: 5M (2560×1920)/ 3M (2048×1536)/ 1.3M (1280x960)/VGA (640×480)/ CIF (352×288/352×240) - Other: 6M (3072×2048)/D1 (704×576/704×480) |
| Frame Rate | - Main stream: 6M (3072×2048)/ 5M (2560×1920)/ 3M (2048×1536)/ 3M (2304×1296)/ 1080p (1920×1080)/1.3M (1280×960)/ 720p (1280×720) at 1–25/30 fps - Sub stream: D1/CIF/VGA up to 25/30 fps - Third stream: 1080p/720p/D1 up to 25/30 fps |
| Audio Compression | G.711a/G.711Mu/AAC/G.726 |
| Audio Stream | Full duplex, simplex |
| Supported Web Browsers | Internet Explorer® (11.0+), Firefox, Chrome, Safar |
| Supported OS | Windows® 7 32-bit/64-bit |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP v2c/v3, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, Multicast, ONVIF |
| Compatibility | ONVIF Profile S, G and Q |
| Maximum Users Access | 20 users |
| Security | User account and password protection HTTPS, IP Filter, IEEE 802.1x, Digest authentication, User access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCIDSS compliance, Hardware chipset for private key |
| Event | No SD card, SD card error, SD card capacity warning, Network disconnection, IP address conflict, Illegal access, Face detection, Audio detection, People counting, Video tampering, Motion detection, Scene change |
| Event Notification | Record (SD card and FTP), Relay output, Email, Snapshot |
| Analytics | Embedded Analytics: Face detection, Audio detection, Video tampering, Motion detection, Scene change, People counting Advanced Analytics: ADPRO IntrusionTrace, ADPRO LoiterTrace analytics, additional Xtralis license application required |
| Micro SD | Up to 128 GB microSDHC card, Class 10 (not included) |
| Micro SD Function | - Event trigger recording - Continuous and scheduled recording - Automatic recording when network fails |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| Electrical | |
| Power Supply | PoE+ (802.3at) Class 4, 12 VDC/24 VAC |
| AC Frequency | 50/60 Hz |
| Power Consumption | 18 W max. (IR LEDs on and motorized lens working) |
| Mechanical | |
| Dimensions | 159.0 mm × 118.0 mm (6.3' × 4.6') |
| Weight | Product: 1.2 kg (2.6 lb. ); Package: 2.1 kg (4.6 lb.) |
| Construction | Die-cast aluminum housing with powder coat |
| Construction Color | RAL 9003 (White) and RAL 7022 (Grey) |
| Environmental | |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Relative Humidity | Less than 95%, non-condensing |
| Gore Vents | Yes |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| Regulatory | |
| Emissions | EN55032, ANSI C63.4-2014, ICE 003 Rev6, AS/NZ CISPR 32:2013 |
| Immunity | EN50130-4 |
| Safety | EU: EN60950-1, EN60950-22 North America UL listed to UL/CSA 60950-1, 60950-22 |
| RoHS | EN50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
