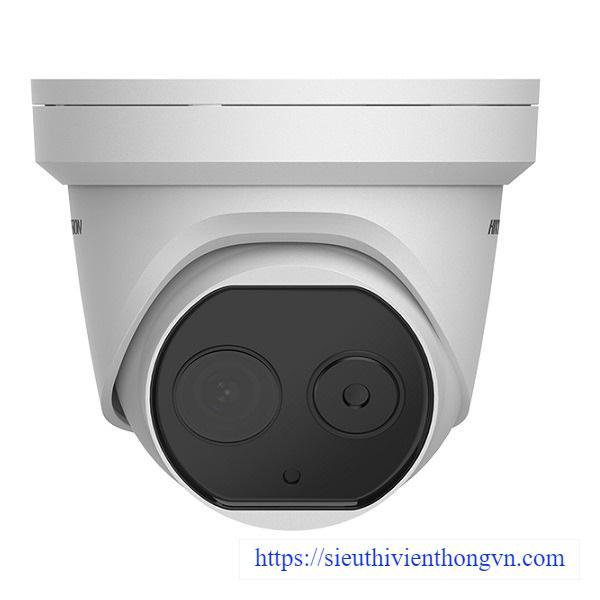

Camera IP Dome hồng ngoại đo thân nhiệt HIKVISION DS-2TD1217B-3/PA(B)
- Ống kính ảnh nhiệt:
+ Độ phân giải: 160 × 120;
+ Tiêu cự: 3mm;
+ POV: 50°×37.2°.
- Ống kính quang học:
+ Độ phân giải: 2688 x 1520;
+ Tiêu cự: 4mm.
- Tầm quan sát hồng ngoại: Lên đến 15 mét.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Hình thức video: Bi-spectrum Image Fusion.
- Nhiệt độ sai lệch: ±0.5℃.
- Thermographic Range：30-45℃.
- Chiều cao lắp đặt: 1.5m.
- Khoảng cách khuôn mặt: 1m.
Đặc tính kỹ thuật
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 160 × 120 (the resolution of output image is 320 × 240) |
| Pixel Interval | 17 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 40 mK (25°C), F# = 1.1 |
| Lens (Focal Length) | 3.1 mm |
| IFOV | 5.48 mrad |
| Field of View | 50° × 37.2° (H × V) |
| Min. Focusing Distance | 0.2 m |
| Aperture | F1.1 |
| Optical Module | |
| Max. Image Resolution | 2688 × 1520 |
| Image Sensor | 1/2.7' Progressive Scan CMOS |
| Min. Illumination | Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1s to 1/100,000s |
| Lens (Focal Length) | 4 mm |
| Field of View | 84° × 44.8°(H × V) |
| WDR | 120 dB |
| Day & Night | IR cut filter with auto switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture | Combines details of thermal and optical image PIP, overlay thermal image on optical image |
| Smart Function | |
| VCA (Video Content Analysis) | 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally |
| Temperature Measurement | 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line) |
| Temperature Range | 30 °C to +45 °C |
| Temperature Accuracy | ± 0.5 °C |
| Fire detection | Dynamic fire point detection, up to 10 fire points detectable |
| Infrared | |
| IR Distance | Up to 15 m |
| IR Intensity and Angle | Automatically adjusted |
| Network | |
| Main Stream | Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720) Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240 |
| Sub-Stream | Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 704 × 576, 352 × 288, 320 × 240 |
| Video Compression | H.265/H.264/MJPEG |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Simultaneous Live View | Up to 20 |
| User/Host Level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security Measures | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Integration | |
| Alarm Input | 1-ch inputs (0-5 VDC) |
| Alarm Output | 1-ch relay outputs, alarm response actions configurable |
| Alarm Action | SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm |
| Audio Input | 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ±10% |
| Audio Output | Linear level; impedance: 600 Ω |
| Reset | 1 Reset Button |
| Communication Interface | 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface |
| SD Memory Card | Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording |
| Analog Video Output | 1.0 V [p-p]/75 Ω, PAL/NTSC |
| Application Programming | Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE9+, chrome31-44, Firefox 30-51, Safari 5.02+ (mac) |
| General | |
| Menu Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power | 12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3) |
| Power Consumption | 12 VDC ± 20%: 0.5 A, max. 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W |
| Working Temperature/Humidity | -20 °C to 50 °C Protection Level95% or less |
| Protection Level | IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection |
| Dimension | 138.3 mm × 138.3 mm × 123.1 mm (5.45 ' × 5.45' × 4.85 ') |
| Weight | 940 g (2.07 lb) |
- Bảo hành: 24 tháng.
